Bioteg - Model EKBF Series -Ventilation Shaft Biofilter
The biofilters of the series EKBF which consist of a stainless steel cladding with integrated separately removable and refillable biofilter cartridge have been designed and optimized specially as a complete system for odor reduction of waste water chambers.
Most popular related searches
odor control system
vent biofilter
biofilter
biofilter odor control
odor biofilter system
filter cartridge
cartridge filter
odor control
odorization system
odor control water
Instead of a chimney the ventilation shaft can be used as a complete system. It can be put easily into the spigot and socket joint.
A strong ground plate of stainless steel fixes the system at the ground. The life time of these biofilters depends on the degree of contamination in the waste air and the operating conditions of the biofilter. It varies between 3 and 7 years. After this time the filter material can be composted and the biofilter be filled again.

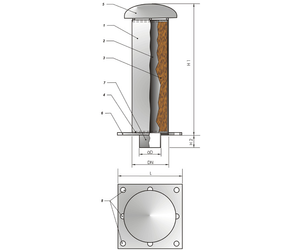

- Ventilation shaft
- Separate, refillable filter cartridge
- Filter material
- Area of support with gasket
- Removable cover
- Ground plate
- Transition to spigot and socket joint
- Drill hole d 17
