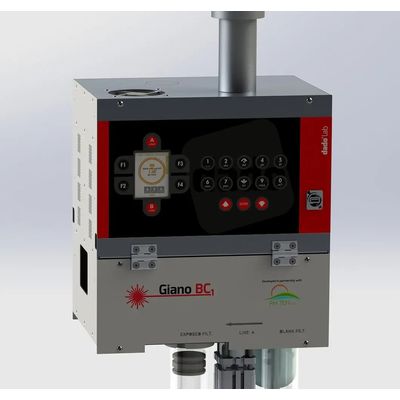

Dado Giano - Model BC1 -Black Carbon Analyzer

FromDado Lab SRL

SHARE

Giano BC1 is a sequential sampler with Black Carbon analyzer in real time directly on the sampling filter. Born from the collaboration between PM_Ten, a spin-off of the University of Genoa that followed the design, and Dado lab, which engineered and implemented the system in its sequential sampler, Giano BC1 is the first PMx sampling system in the world capable of determining the Black Carbon concentration in real time directly on the sampled filter.

Most popular related searches

carbon analyzer

sequential sampling

ambient analyzer

sequential sampling analyzer

General

Operation conditions: -20 ÷ 45°C
Stock conditions: -10 ÷ 50°C 95% UR
Max numbers of blank/exposed filters: 21
Display: LCD grafico a colori da 3.5” QVGA
Data Port: USB 2.0
Internal Memory: 16GB
Power supply: 230 Vac ±10% 50/60Hz
Materials: Steel/Aluminum combined structure
Keyboard: Polycarbonate, tactile effect keys
Weight:
- Giano BC1: 43kg
Power consumptions (230Vac 50Hz):
Giano (w/ Glass ﬁbers ﬁlter): 0.65 A approx 0.150 kW

Specifications

Black Carbon:
- Sensibility: 0.05 ug/m3
- Minimum readable value: 0.05 ug/m3
- Saturation: 500 ug/m3 [1 ora di campionamento]
- Range: 0.05 ÷ 22.0 ug/m3 [concentrazione media 24h]
Sampling ﬂowrate:
- Measuring Device: orifice meter
- Range: 10 ÷ 60 l/min
- Resolution: 0.01 l/min
- Range: 0.05 ÷ 22.0 ug/m3 [concentrazione media 24h]
- Accuracy: ± 1%
Amb. Pressure/Pressure Drop:
- Range: 10 ÷ 105 kPa (1050 mBar)
- Hysteresis and Linearity: 0.25 % F.S
- Resolution: 0.01 kPa (0.1 mmH2O)
- Accuracy: Better than 1% (± 2Pa)
Temperatures:
- Ambient: PT100
- Range: -20 + 100°C
- Resolution: 0.01°C
- Uncertainty: ≤ 1°C
- Filter Sampling/Storage: TC Type J
- Range: -20 + 100°C
- Resolution: 0.01°C
- Uncertainty: ≤ 1°C

Weather

RH % Humidity:
Range: 0 ÷ 100 %
Resolution: 1%
Accuracy: ± 5 % (range 0% to 60% RH)
