Blastcrete - Model D3522 -Concrete Mixer-Pump

FromBlastcrete Equipment Co

SHARE

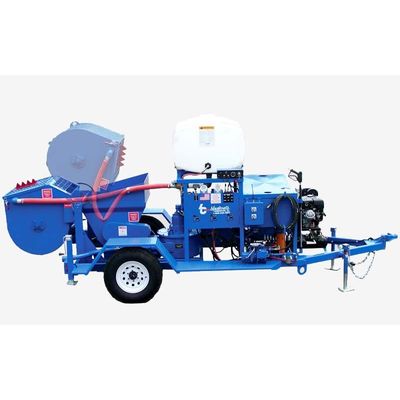

The D3522 Mixer-Pump is equipped with our D3522 2-inch hydraulic squeeze pump with infinitely variable speeds from 0-6 cubic yards per hour. It features a 9-cubic-foot capacity hydraulic spiral mixer with a hydraulic dump, a hydraulic agitator in the receiving hopper, and mounted on a high-speed, single-axle trailer with lights and electric braking package. The D3522 Concrete Mixer-Pump’s primary wear part is the rubber pumping tube that can be replaced in 20 minutes.

Most popular related searches

water metering system

cellular concrete

metering system

pressure washer

9 ft³ (.25 m³) hydraulic spiral mixer with hydraulic dump
12 ft³ (.34 m³) receiving hopper with hydraulic agitator
Reliable 29-HP Kubota water-cooled diesel engine
Simple 2″ (50 mm) hydraulic squeeze pump driven by heavy-duty planetary gearbox
Lowest cost pump to purchase, own and operate
Longest-lasting pumping tubes in the industry
Robust tubular steel framework

Gypsum flooring underlayments
⅜-inch (10-mm) aggregate shotcrete
⅜-inch (10-mm) aggregate concrete mixes
Cellular concrete
Wet Shotcrete
Faux rock construction plaster
Stucco application
Structural panels
Slabs
Slab jacking
Roofs

Length: 204” (518 cm)
Width: 88” (224 cm)
Height of water tank: 89” (226 cm)
Height of mixer (dump position): 86” (218 cm)
Charging height: 56” (142 cm)
Output capacity: 0-6 yd³/hr. (4.6 m³/hr.)
Mixer capacity: 9 ft³ (0.25m³)
Receiving hopper capacity: 12 ft³ (0.34 m³)

2,000 psi (138 bar) hydraulic pressure washer
150 gal. (568 l.) water tank with 2” (5 cm) flow meter
Blastcrete computerized water metering system
Spare tire
Pendant or wireless remote
Skid-mounted with forklift tubing
Dual axles
Air compressor

Power Options

Kubota V1505 29-HP Kubota water-cooled diesel
Kohler 38-HP gasoline engine
30-HP electric motor
