Bloc-O-Lift - Blocking Gas Springs
Variable positioning, rigid or spring blocking. BLOC-O-LIFT gas springs raise loads with an accurately tuned extension force and application-specific dampening while ensuring user-friendly movement sequences. In addition, BLOC-O-LIFT gas springs can be blocked in any position, with springing or rigid blocking in the extension or compression direction depending on the design.

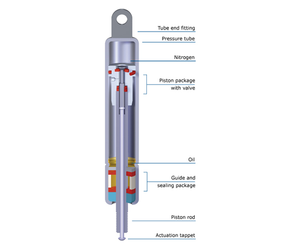

Variable blocking is made possible by integrating the valve into the piston, which separates both pressure chambers gastight.
When the valve is closed, thereby interrupting the gas exchange between both pressure chambers, the BLOC-O-LIFT® gas spring is blocked. The valve closes automatically when the valve tappet is released externally.
The springing blocking variant is ideal for the smooth dampening of e.g. shocks, impacts or pulse-type peak loads (e.g. in seats and office swivel chairs).
- Rigid or spring blocking in the extension or compression direction. Optionally, a position- independent variant is available
- Also available with short release travel of only 1mm (normally 2.5mm) for extremely light operation
- Continuous release is also available on request (e.g. for rocking the backrest of swivel chairs).
