IGEMA - Model Type KAVx R1-N -Blow Down Valves
FromIGEMA GmbH

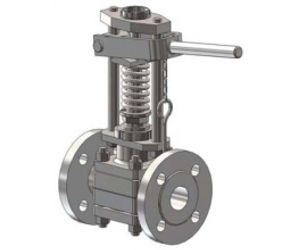

The valve is used to blow down and / or to drain steam boilers. The conception of the valve enables a fast opening necessary for the blowing down. This fast opening causes a suction in the boiler whereby deposits and possible solids are flushed out of the boiler.
Most popular related searches
blow down valve
pneumatic actuator
globe valve
spindle
manual valve
valve actuator
control valve
pneumatic valve
- KAV1 R1-N Blow-down valve with handlever.; A later equipment with pneumatic actuator is possible without problems.
- KAV2 R1-N Blow-down valve with pneumatic actuator for automatic blowing down in connection with the program-controlled IGEMA magnetic valve type PGM

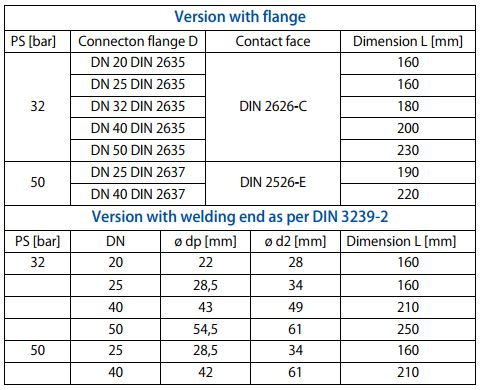

- Construction as globe valve with flange connection or welding end according to DIN
- Quick closing mechanism for fast closing and opening
- Adjustable stuffing box
- Clamp-in valve seat
- Possibility to lock the valve manually in open position
- Possibility to operate the pneumatic actuator with the control media air or water
- Materials:
- pressure holding parts: steel for high-temperature service
- Spindle, seat and cone: stainless steel
- Yoke: carbon steel
- Lever: carbon steel
