OEwaves HI-Q - Model OE4045 -Blue Laser
FromOEwaves, Inc.

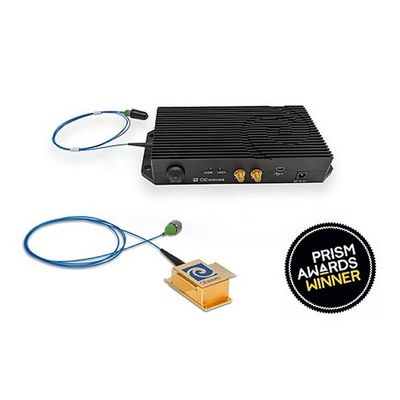

Blue laser with ultra-narrow Lorentzian Linewidth and low phase/frequency noise in a compact form factor in the 435 nm – 480 nm range. The HI-Q laser houses a proprietary driver/controller and the OEwaves laser source which is based on a high quality factor (Q) Whispering Gallery Mode (WGM) optical micro-resonator. The laser is available at a variety of wavelengths from 435 nm to 480 nm.
Most popular related searches
optical sensing
optical metrology
acoustic sensing
packaging integrity
gas sensing
interface monitoring
strain sensing
optical interferometer
metrology
interferometer
- Ultra-narrow Instantaneous Laser Linewidth
- Ultra-Low Phase/Frequency Noise
- 435 nm - 480 nm Wavelength
- Low Vibration Sensitivity
- Low Residual Amplitude Modulation
- Wavelength Stability
- Compact Package
- Integrated Driver/Controller
- USB or RS-232 Control Interface
- Interferometric Optical Sensing
- LIDAR
- B-OTDR Temperature and Strain
- Gas Sensing
- Optical Metrology and Spectroscopy
- Quantum Computing
- Quantum Communications
- Quantum Sensing
- Acoustic Sensing
- Oil and Gas Exploration
- Coherent Communication
- Test and Measurement
- Wavelength: 435 nm – 480 nm
- Spectral Linewidth: Sub-Hz to 10 Hz
- Output Power: 1 mW - 5 mW
- Thermal Tuning Range: ≤ 10 GHz mode hop free
- Monitor / Control Interface: USB
- Frequency Modulation: DC-100kHz
- Monitor / Control Interface: RS 232
