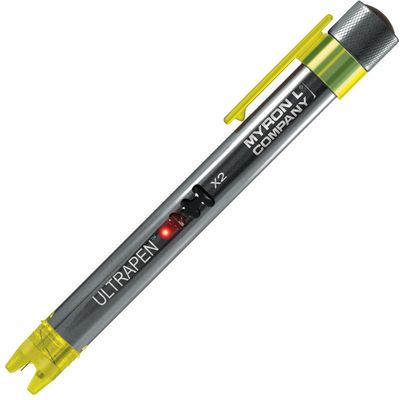

Myron L - Model UltrapenX2 PTBT3 -Bluetooth Enabled ORP/REDOX & Temperature Pen

• Accuracy of ± 10 mV ORP
• 3 Calibration Options with Automatic Solution Recognition
• Automatic Temperature Compensation in Calibration Mode
• 99.9% Pure Platinum Electrode
• Measurement Storage with Time, Date and Location
• Export Stored Measurement Data Via Email
• Live or Hold Mode – User Selectable
• Proprietary Sensor Design
• Rugged Design with Aircraft Aluminum Body
• Durable, Epoxy Encapsulated Electronics
• Powered by One N Type Battery (Included)
• Waterproof

• PTBT3 Pocket Tester Pen
  • Battery Installed
• User Replaceable ORP Sensor
  • Installed
• Protective/Hydration Cap
• Scoop
• Pocket Clip
• ORP Electrode Cleaning Paper
• Quick Start Guide

Mode: Method of Measurement

• Hold: Once stabilized, the readings are captured then displayed.
• LIVE: Real-time readings are displayed continuously during measurement.

• System Requirements: Myron L® Company PTBTX2™ App: Apple iOS 10.0 or later; Android OS 7.0 or later.
• Measurement Range: ORP: -1000 mV to +1000 mV; Temperature: 0 – 71ºC / 32 – 160ºF
• Accuracy: ORP: ± 10 mV; Temperature: ± 0.1ºC
• Resolution: ORP: 1 mV; Temperature: 0.1ºC / 0.1ºF
• Time to Reading Stabilization: 10 – 45 Seconds
• Power Consumption: Active Mode: 30 – 140 mA, Sleep Mode: 2 µA
• Temperature Compensation: Automatic In Calibration Mode From 15ºC to 30ºC
• Physical Dimensions: 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D
• Weight: 50.4 g / 1.78 oz
• Case Material: Anodized Aircraft Aluminum with Protective Coating
• Battery Type: : One N type, Alkaline 1.5 V
• Calibration Standard Solution: ORP80, ORP260, ORP470
• Operating/Storage Temperature: 0 – 55ºC / 32 – 131ºF
• Water Resistance: IP67 and NEMA 6
• EN61236-1: 2006 – Annex A: 2008;: Electrostatic discharge to case of instrument may cause PTBT3 to spontaneously power on. In this case, the PTBT3 will power off after several seconds.
• FCC ID: T7VPAN17: The Bluetooth transceiver device meets the requirements for modular transmitter approval as detailed in FCC Public Notice DA00-1407.
• Canada (IC), license: IC: 216Q-PAN17
• The Bluetooth transceiver device meets the requirements for modular transmitter approval as detailed in RSS-GEN.

WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm.

• Agriculture
• Hydroponics
• Desalination
• Aquaculture
• Pharmaceutical
• Boilers and Cooling Towers
• Fountain Solutions for Printing
• Horticulture
• Wastewater
• Pool and Spa
• Food and Beverage
• Irrigation
• Reverse Osmosis
• Plus Many More!

• Standard Solutions for Calibration:

The ULTRAPENx2™ PTBT3 requires Myron L^® Company 80 mV Quinhydrone, 260 mV

Quinhydrone, or 470 mV MLC Light’s ORP Standard Solutions for wet calibration and Myron L^® Sensor Storage Solution for proper storage.

Order model numbers:

• ORP802OZ: 80 mV, Kit, Quinhydrone/pH7: 2 oz.
• ORP2602OZ: 260 mV, Kit, Quinhydrone/pH4: 2 oz.
• ORP4701OZ: 470 mV, MLC Light’s Solution: 1 oz.
• ORPCALKIT: Calibration Kit, ORP, 80 mV, 260 mV, 470 mV:
• SS2OZ: Storage Solution : 2 oz

(For additional information and calibration kits available, contact the Myron L® Company.)

ORP ELECTRODE CLEANING PAPER

Routinely cleaning the platinum electrode will keep the sensor free of build-up that can affect the speed and accuracy of ORP measurements. Instructions for use are included with the paper.

Order Model Number:

• OECP-25 QTY 25
• OECP-100 QTY 100

REPLACEMENT ORP SENSOR

The ULTRAPENx2TM PTBT3 features a user replaceable ORP sensor with a unique porous liquid-junction. Installation instructions included with sensor.

Order Model Number:

• RPT3 Replacement ORP Sensor
