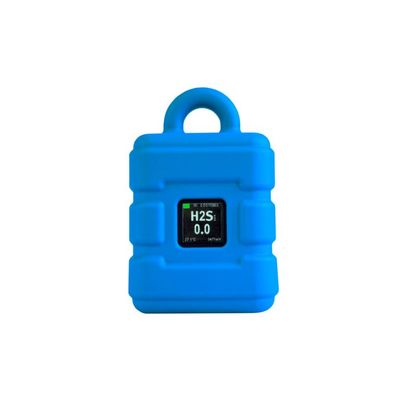

NivuLog - Model NLM0 H2SB -Bluetooth / GSM H2S Measurement Device

• Data transmission via Bluetooth or GPRS/UMTS
• Data management local or via  D2W Internet portal
• Sensor replacement directly on site
• Read out and transmit data to D2W server via smartphone app
• Built-in long-life SIM chip
• Battery life up to 5 years
• Robust, rubber-coated enclosure with high chemical resistance
• ATEX zone 1 certified

Hydrogen sulfide (H2S) is produced as a result from the degradation of biomass. Far flowing distances, long flowing times as well as saving water at constant pollution loads cause the loads to start decomposition even within the channel.

This in turn leads to heavy corrosion of concrete channel constructions and, in combination with water, destroys the channel constructions in the long run. To avoid damaged channels it makes sense to investigate the hydrogen sulfide concentration, which allows to take the appropriate corrective measures.

• Wastewater treatment plants
• Industries
• Public Water and sewage systems

NivuLog H2S Bluetooth

• Transmission: Bluetooth Smart
• Display: 1,5" colour OLED display
• Battery life:
• Sensor module 18 months at
• 1 min. measurement cycle,
• Gateway 36 months
• Protection: IP 66
• Pressure range: atmospheric ±10 %
• Operating temperature: -10 °C ... +40 °C
• Relative humidity: 15 % ... 90 % r.F.
• Sensor modules:
• H2S Gas Nominal: 0 ... 200 ppm, max. overload: 1000 ppm
• Resolution: 0.25 ppm, repeat accuracy: 1 %m T90, time: 35 sec., wear: 0 ... 100 %
• Measurement range:
• Internal Temperature: -20 °C ... +50 °C
• Internal relative humidity: 0 ... 100 % r.H.
• State of battery charge: 0 ... 100 %
• Bluetooth / GSM signal quality: -50 dBm ... 110 dBm
• Readings memory: approx. 1380 days with 10 min. recording cycle
• Enclosure: 166 x 106 x 61 mm (H x B x T)
• Material: Noryl GTX 973 / PC

NivuLog H2S Bluetooth GSM

• Transmission:
• Bluetooth Smart
• 2G GPRS 900 MHz / 1800 Mhz
• 3G WCDMA 900 MHz / 2100 Mhz
• Display: 1,5" colour OLED display
• Battery life:
• Sensor module 18 months at
• 1 min. measurement cycle,
• Gateway 24 months at 4 h transmission interval
• Protection: IP 66
• Pressure range: atmospheric ±10 %
• Operating temperature:
• -10 °C ... +40 °C
• Relative humidity: 15 % ... 90 % r.H.
• Sensor modules:
• H2S Gas Nominal: 0 ... 200 ppm, max. overload: 1000 ppm
• Resolution: 0.25 ppm, repeat accuracy: 1 %m T90, time: 35 sec., wear: 0 ... 100 %
• Measurement range:
• Internal Temperature: -20 °C ... +50 °C
• Internal relative humidity: 0 ... 100 % r.H.
• State of battery charge: 0 ... 100 %
• Bluetooth / GSM signal quality: -50 dBm ... 110 dBm
• Readings memory: approx. 1380 days with 10 min. recording cycle
• Enclosure: 166 x 106 x 61 mm (H x B x T)
• Material: Noryl GTX 973 / PC
