Master Flo - Bolted Bonnet Subsea Choke Valves

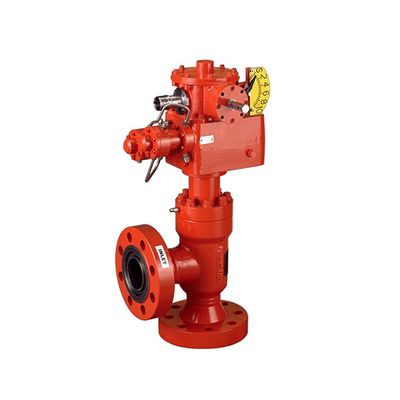

Master Flo’s bolted bonnet subsea choke valves are engineered for reliability and ease of maintenance. These valves are specifically designed for modular-retrieval systems, ensuring efficient and cost-effective operation. With versatile right-angle, inline, or custom piping configurations, our bolted bonnet subsea choke valves are tailored to meet your exact specifications.
- Maintenance-Free Design: Our bolted bonnet subsea choke valves are built to last without the need for frequent maintenance, reducing downtime and operational costs.
- Versatile Configurations: Choose from a range of offerings including side drive override, top drive override or custom designs (with or without ROV receptacles) to ensure seamless integration into your subsea flow management system.
- Extensive Size Range: We offer sizes suitable for end connections of up to 11 inches, with an impressive Cv rating of 1,700 and the ability to handle pressures of up to 20,000 psig (137,895 kPa).
Master Flo’s bolted bonnet subsea choke valves are a dependable choice for subsea applications, providing superior performance and reliability. Explore our range to discover the perfect solution for your subsea flow control needs.
Valve Type
Right angle, and custom configurations available
Max. Pressures
5,000 PSIG / 34,000 KPA to 20,000 PSIG / 137,895 KPA
Depth
10,000 feet / 3,000 m
Standard Connections
2″ to 11″
Standard Trim
Ported cage with exter
- End connections: 2″ and 3″
- Maximum Pressure: 10,000 PSIG
- Nominal Capacity (Cv): 21
- Optional Cv: 27
- Nominal Steps (full close to full open): 110
- End connections: 2″, 3″ and 4″
- Maximum Pressure: 15,000 PSIG
- Nominal Capacity (Cv): 36
- Optional Cv: 45
- Nominal Steps (full close to full open): 90
- End connections: 3″ and 4″
- Maximum Pressure: 10,000 PSIG
- Nominal Capacity (Cv): 61
- Optional Cv: 83
- Nominal Steps (full close to full open): 170
- End connections: 4″ and 5″
- Maximum Pressure: 15,000 PSIG
- Nominal Capacity (Cv): 92
- Optional Cv: 129
- Nominal Steps (full close to full open): 160
- End connections: 4″, 5″ and 7″
- Maximum Pressure: 15,000 PSIG
- Nominal Capacity (Cv): 162
- Optional Cv: 205
- Nominal Steps (full close to full open): 200
- End connections: 5″ and 7″
- Maximum Pressure: 10,000 PSIG
- Nominal Capacity (Cv): 250
- Optional Cv: 300
- Nominal Steps (full close to full open): 226
- End connections: 5″, 7″ and 9″
- Maximum Pressure: 10,000 PSIG
- Nominal Capacity (Cv): 335
- Optional Cv: 400
- Nominal Steps (full close to full open): 270
- End connections: 7″, 9″ and 11″
- Maximum Pressure: 10,000 PSIG
- Nominal Capacity (Cv): 700
- Nominal Steps (full close to full open): 445
- End connections: 9″ and 11″
- Maximum Pressure: 7,500 PSIG
- Nominal Capacity (Cv): 1,200
- Nominal Steps (full close to full open): 445
