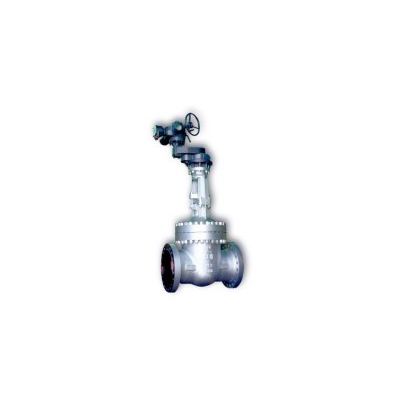

Valvospain - Bolted Bonnet Valves
Design API 600, ASME B16.34. Pressure-Temp. Rating ASME B16.34. Face To Face Dimension ASME B16.10. Flanged Ends ASME B16.5 (up to 24"), ASME B16.47 (above 26") . Butt Weld Ends ASME B16.25 . Pressure Test API 598.
Most popular related searches
globe stop
globe check valve
check valve
pressure testing system
globe valve
electric actuator
hydraulic pneumatics
pneumatic actuator
gate valve
MANUFACTURING RANGE
- Ratings From 150 Lbs. to 2500 Lbs.
- Sizes 2" up to 60"
CHARACTERISTICS
- Construction
- Bolted Bonnet
- Gate
- API 600, ASME B16.34
- OS&Y, Rising Stem
- Flexible Wedge or Parallel Slide
- Globe
- BS 1873, ASME B16.34
- Rising Handwheel
- Body in "T" or "Y" shape
- Option: Globe, Stop-Check
- Option: Angle globe
- Check
- BS 1868, ASME B16.34
- Swing Check or Piston Check
- Optional outside lever and counter-weight
- Ends
- Flanged (RF, FF, RTJ) or Butt Weld (BW)
- Operation
- Manual (handwheel or gearbox)
- Actuated (Electric, pneumatic or hydraulic)
- Materials
- See Materials section
