Bolttech - Model TL2 -Low Clearance Hydraulic Torque Wrench
The TL2 Low Clearance Direct Fit Hydraulic Torque Wrench designed by Bolttech Mannings delivers a precise torque performance with an accuracy of +/- 3%. The tool operates at a maximum torque of 1,569 ft-lb (5,424 N-m) and features the highest torque-to-weight ratio in the industry. Constructed from engineered alloy steel that undergoes proprietary heat treatments, this hydraulic torque wrench offers exceptional durability and reliability. The surface of the wrench is coated with a triple process chrome finish providing superior resistance to abrasion and corrosion. The compact design, with the smallest nose radius available, allows for efficient operation in confined spaces. It includes a fixed hydraulic cylinder coupled with a low clearance hexagon hex and comes with a certified calibration chart.
Bolttech Mannings’ 1,569 ft-lb (5,424 N-m) Low Clearance / Direct Fit TL2 hydraulic torque wrench delivers controlled torque accuracy of /- 3% with the highest torque to weight ratio in the industry! Built from ultra-high strength materials for unsurpassed durability, reliability and performance. Plus, the smallest nose radius on the market ensures a strong, safe fit even in the tightest of spots.

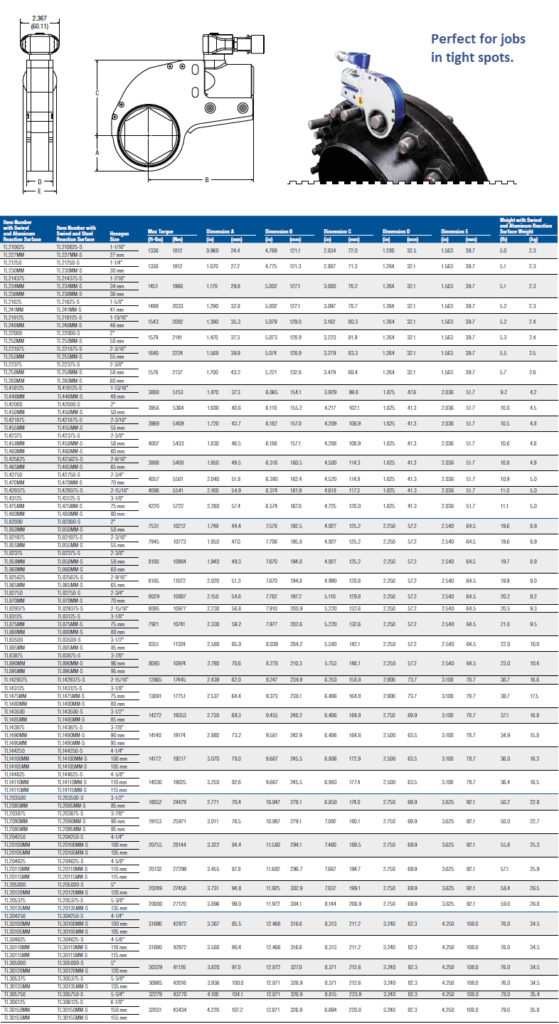

1,569 ft-lb (2,127 N-m) hydraulic torque wrench with fixed hydraulic cylinder coupled with a low clearance hexagon hex. Manufactured from engineered alloy steel with proprietary heat treatments. Surface is coated with a triple process chrome finish providing superior abrasion and corrosion resistance. Supplied with certified calibration chart.
