AK Stamping - Model D -Bond Assembly

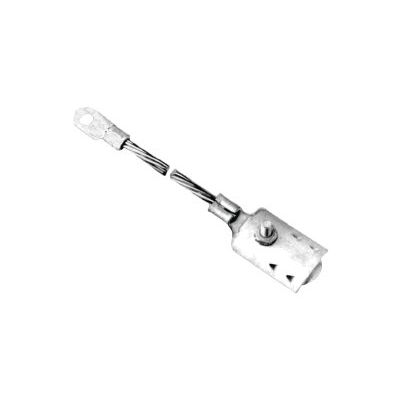

Bonding and grounding is achieved in one product. The D Bond Assembly consists of a No. 6 AWG 7 strand ground wire and a UL approved terminal lug. Each clamp consists of two formed brass plates which are tin plated`. The inner plate is equipped with a stud onto which the outer plate and one flat washer, lock washer, and nut are assembled. The inner plate also has a ferrule to which the ground wire is attached.
