Nordson - Model 4000 Plus -Bondtester

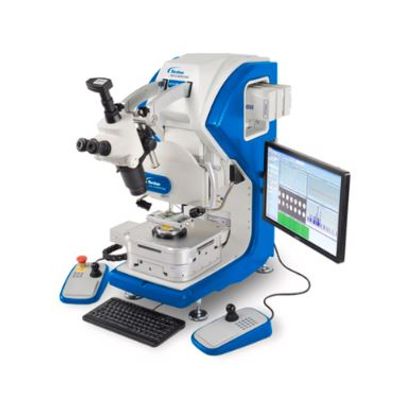

The second generation Nordson TEST & INSPECTION 4000Plus is the most advanced bondtester on the market.  Representing the best-in-class, the 4000Plus bondtester sets the industry standard in bond testing offering unsurpassed accuracy and repeatability of data, providing complete confidence in results.

The 4000Plus multi-purpose bondtester performs shear tests up to 200kg, pull tests up to 100kg and push tests up to 50kg, covering all test applications including new hot bump pull and micro materials tests. This system is also ideally suited for applications such as pull and shear testing of wafer interconnections, lead frames, hybrid microcircuits or automotive electronic packages.

• Footprint: W = 630mm  (including left and right joysticks), D = 600mm, H = 830mm
• Weight : 90kg including XY table
• Power Supply : 90- 264VAC single phase
• Pneumatic Supply : 4 bar minimum, 6mm OD plastic pipe. Note some specialized applications may require increased pressure, clean dry air
• Vacuum Supply : 500mm Hg (67kPa) minimum, 6mm OD plastic pipe

• Total system accuracy using load cartridges : +/- 0.1% full scale deflection for selected load range (see detailed load cell specifications)
• Shear (ball and die) load cartridge step back accuracy (excl. S25) : +/- 1μm over 2mm of travel in Z-axis
• S25 step back accuracy : +/- 0.25μm over 2mm of travel in Z-axis
