Potential - Boom Reels

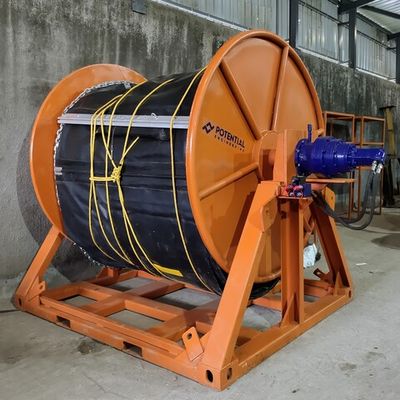

Boom reel is suitable for booms of any construction such as oil hose, oil containment boom and hydraulic hose. It is designed for safe and easy storage, deployment and recovery of containment booms. The reel frame and spool are made of high-quality marine grade coated steel/stainless steel/marine grade aluminium. It is lifted by forklift channels on all four sides and two- or four-point arrangement for lifting securely. It is designed to fit in a standard ISO container which can be locked and secured by either dedicated lashing points or built-in ISO container corners. The boom reel is driven hydraulically and the reel is provided with hydraulic and manual brakes.
We offer superior-design oil containment booms for safe & easy storage and deployment & recovery of light and heavy booms. It is compact and can fit in an ISO storage container. The boom reel can be easily moved using a forklift or any lifting device. It is hydraulic driven and is equipped with hydraulic and manual brakes.
- Type : Open type
- MOC : MS/ SS/ Al
- Width : 900 mm to 2250 mm
- Drive : Diesel engine driven hydraulic power pack/manual
- Hydraulic Hoses : R2 grade, MOC: Rubber
- Brake : Hydraulic & Mechanical
- Accessories : Quick release coupling with lock rings, ISO storage containers, Heavy duty tarpaulin cover, Air blower.
- Compact modular design
- Double planetary gear/hydraulic motor for high torque
- Counterbalance valve for safe operation
- 2- and 4-point lifting arrangements for secure lifting
- Forklift channels on all 4 sides
- Container corners for locking and securing
- Oil Spill Response
- Floating Trash Removal
- Oil & Gas
- Municipal
- Marine
