Bauer Compressors, Inc.

- Boosters

From

0

1 and 2 stage boosters for air and nitrogen available in three different models. The new Vertical Booster series from the technology leader in high pressure offers space-saving designs suitable for the most demanding requirements. Open models offer a budget conscious practical solution while enclosed models can be installed in occupied spaces. Both styles include a full-featured control system for unattended automatic operation.The vertical series offers the perfect continuous-duty rated solutions for a wide variety of applications.

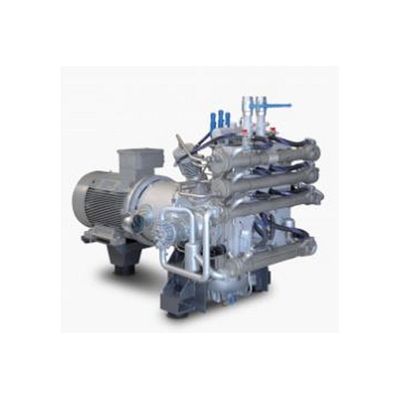

When special applications demand extreme reliability, our water-cooled industrial unit range comes into its own. Large-dimensioned bearings and the sophisticated water cooling, in combination with the intelligently designed dry sump lubrication, minimize thermal stress and wear, for a reliable and trouble-free operation under most difficult ambient conditions.

  • 360-6000 psi (25-420 bar)
  • 32-1010 scfm (55-1716 m3/h)
  • Air-Cooled
  • Pressure Lubricated
  • Continuous-Duty Rated
  • Automatic Condensate Drain
  • PLC Control for Unattended
  • Automatic Operation
  • Open or Enclosed
  • Designs Available
  • Available Purification

BK12.3

  • 218-725 psig (15-50 bar) discharge pressure
  • 72-185 (4.8-12.75 bar) psig inlet pressure
  • 18-70 scfm (510-1982 l/min)
  • 5-10 HP (3.7-7.5 kW)

BK12.2

  • 1300-5000 psig (90-345 bar) discharge pressure
  • 72-160 psig (4.8-11) inlet pressure
  • 4.7-17.1 scfm (113-485 l/min)
  • 5-7.5 HP (3.7-5.5 kW)

BK15.3

  • 1300-5000 psig (90-345 bar) discharge pressure
  • 100-145 psig (7-10 bar) inlet pressure
  • 14-26.5 scfm (396-750 l/min)
  • 7.5-15 HP (5.5-11 kW)

Energy-efficient compressor systems for air and gases

  • Water-cooled
  • Pressure-resistant crankcases
  • For air, nitrogen, rare gases, and CNG

Scope of Supply available upon request

DIMENSIONS L x W x H inches (mm)
VERTECON
45 x 32.5 x 55 (1143 x 826 x 1397)

MINI VERTICUS
49.5 x 29.5 x 58 (1257 x 749 x 1473)

MAXI VERTICUS
52 x 34 x 65.5 (1321 x 864 x 1664)

WEIGHT pounds (kg)
VERTECON
550-660 (250-300)

MINI VERTICUS
880-950 (400-432)

MAXI VERTICUS
1100-1225 (500-556)
