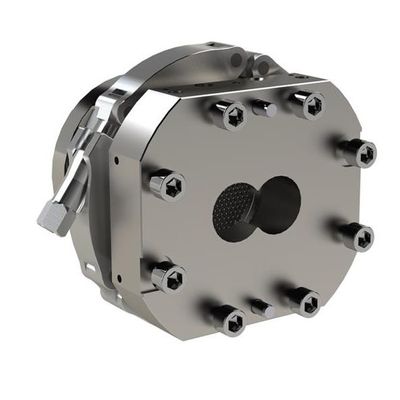

Trendelkamp - Model TSA -Breaker Plate Assembly for Discontinuous Filtration
The TSA Breaker Plate Assembly is a simple and cost-effective filtration device with one screen cavity. The C-Clamp allows easy screen changes. It is mainly used for low polymer contamination, lab line applications or as protection for a melt pump.
Most popular related searches
screen changer
heat protection
high temperature filtration
laboratory contamination
screening system
laboratory product
corrosion protection
- For small production and lab lines
- Two-piece adapter with one screen cavity and quick release C-clamp connection
- Discontinuous and manual operation
- Safe and easy handling
- Short flow channesl
- Suitable for various applications
- Filtration size up to 452 cm²
- Process pressure and temperature up to 350 bar / 350 °C
- Differential pressure of breaker plate up to 100 bar
- Oil, fluid, cartridge, band or steam heated
- Protection against corrosive or abrasive materials
- Stainless steel design
- High temperature designs
- Extrusion
- Recycling
