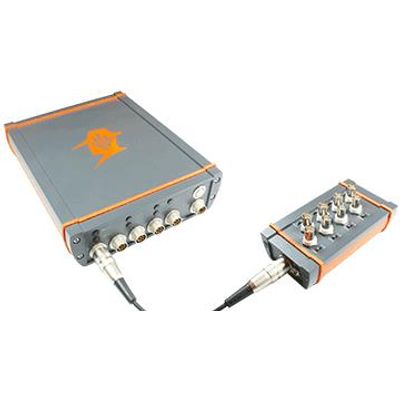

CAE - Breakout Box - ICP/IEPE, Analog Sensor Data Acquisition System
The Breakout Box makes it possible to connect ICP/IEPE and analog sensors to the data acquisition system I2S Frontend. Every channel can be seperatly switched between ICP/IEPE or analog application. This offers high flexibility.
Most popular related searches
The data acquistion system is a National Instruments embedded-controller with real-time operating system and FPGA.
- Number of channels: 40
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface to PC: Ethernet
- Fanless: Yes
- Additional inputs: Trigger, Tacho (RPM)
- Powersupply: 12 V
- Consumption: < 7 W
- Dimension: 23 cm x 18,5 cm x 5,8 cm
- Weight: 2 kg
The Breakout Box extends the data acquisition system for connecting ICP/IEPE and analoge sensors the Frontend.
- Number of channels: 8 to 40
- Sensor interface: ICP, IEPE and analog sensors single switchable
- Input voltage: ± 5 V
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface: Connection to I²S Frontend
- Fanless: Yes
- Powersupply: 12 V
- Consumption: < 1 W
- Dimension: 14 cm x 7,5 cm x 5 cm
- Weight: 0,5 kg
