Bridle-Trac - Bridle Chamber
The Questtec Solutions Bridle-Trac utilizes a pipe chamber mounted directly to a vessel with two or more process connections. These connections act as an inlet and outlet that allow the liquid level in the pipe chamber to match the level in the process vessel. A bridle-trac may be referred to in the industry as a bridle chamber, a stilling well, a bypass chamber, a cage or a standpipe. It may be used with a customer specified radar for level measurement.
Most popular related searches
Hastelloy C 276
process vessel
bypass level indicator
isolation valve
temperature indicator
level monitoring
drain valve
radar level monitoring
flanged pipe
standpipe
- Customized engineered designs to fit existing vessel units
- Allows external mounting of electrical measuring instrumentation
- Functional in both general and critical application
- Available in a variety of materials, connection sizes, and types
- Vent/Drain Valves and Isolation Valves available
- Temperature management accessories options available
Overview
- Measuring Range: 12 to 600in (over 50ft consult sales)
- Temperature Range: -320°F to +1000°F (-196°C / +538°C)
- Pressure Range: Full Vacuum to 2800 psig

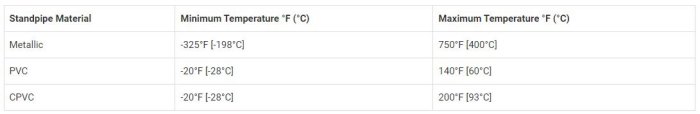

Materials of Construction
- Chamber Materials: (Metal Alloys): 316 /316L or 304/ 304 Stainless Steel, Monel, Hastelloy C-276, Alloy 20, and other Non-Magnetic Alloys
- Chamber Materials: (Plastics/Composites): PVC, CPVC, AND PVDF
*Carbon Steel / Stainless Steel Combination Gauges available on request – contact sales
Process Connections
- Pressure Class Ratings: ANSI 150#; 300#; 600#; 900#; 1500#; 2500#
- Process Connection Sizes: ½” to 10+ [DN20 TO DN150]
- Process Connection Types: MNPT, FNPT, Weldolet®, Sockolet®, Socketweld Flange, Weldneck Flange, Lap Joint Flange; RTJ Flanged, Plain Pipe Stub
Temperature Options
- High Temperatures: Insulation Blankets, Electric or Steam Tracing, High Temperature Indicators, etc.
- Low Temperatures: Insulation Blankets, Cryogenic Insulation, Non-Frost Extensions, Electric or Steam Tracing, etc.
