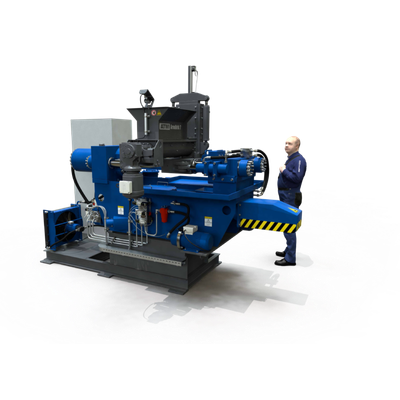

ATM Arno Brik - Model 7 -Briquetting Presses
Enormous reduction of wear in the press box: The movable tool frame compensates for relative movement during the compression phase. High-density briquettes: Excellent transport and melting properties thanks to high briquette compression. 2-column technology: Maximum variability in tool unloading. The columns with patented locknuts handle millions of compression cycles at full load. Compact design: Minimal space requirement due to the compact machine design.
Energy efficiency
Up to 20% higher than the competition: optimized power consumption with unchanged volume reduction of the main cylinder.
Fluid recovery
Collection tank with pumps for fluid recovery. Presses for grinding sludge can be equipped with a sludge conveyor.
Material-appropriate feeding
Feeding variants can be adapted to optimally capture the input material.
Press tool know-how
Various tool designs optimize briquette quality and performance, while material selection extends service life.
Material dosing via weigh system
Process-reliable briquetting with a defined briquette length.
