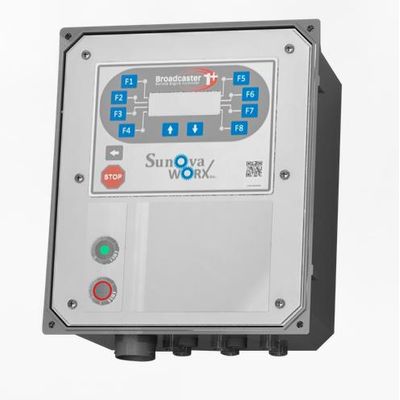

Broadcaster - Model 1 -Remote Engine Control System
Broadcaster 1+ is a remote engine control system designed to enhance your liquid pumping operations. BC1+ works on mechanical, electronic J1939 and VFDs or a combination of pumps. BC1+ uses cellular communication and supports control and monitoring using smart phones, tablet or desktop computers. BC1+ has multiple built-in safeties and a few common features to choose from. This system is ideal for a number of different industries such as agricultural, irrigation, water-transfer, dewatering, series or parallel pump set-ups and municipal pumping.
Broadcaster 1+ has been designed with the key features of our Broadcaster 1 and Broadcaster 2 to give you the best features to choose from to simplify and improve your operations. Broadcaster 1+ is intended as a user-friendly, entry-level system with minimal complexity while still providing core features as well as flexible options.
- Internet (cellular, WiFi and Ethernet)
- Control and monitor via web portal on your phone, tablet, or computer
- Compatible with existing Broadcaster 2 systems (and Broadcaster 2 Rugged Tablet remotes)
- Works with existing Broadcaster 1 remote controllers (with radio option)
- 12V or 24V system
- RPM control (digital, rocker switch, resistance)
- Remote engine start/stop (warning beacon and audible alarm)
- Display and emit engine vitals (J1939 only)
- Intuitive speed control with +25 RPM speed increments, manual RPM control
- Weather-proof enclosure with heated LCD backlit display screen with push buttons
- 2 internal relays for start / stop only
- WiFi-ready
- Radio-ready
- GPS
- Boost pump cruise control ready (requires inlet and outlet pressure transducers)
- 8 outputs for feature or communication options
- Compatible with Broadcaster 1, Broadcaster 2 Standard and Broadcaster 2 w/Controls Inc.
- Save money
- Practical
- Improve productivity
- Control from your cell phone, tablet, or computer
- Reduce down time
- Monitor/control worldwide
- Constant communication
- Outlet pressure sensing
- Inlet pressure sensing
- External relay hookups (dual relay output, configurable to control 1 double-acting output)
- Actuator control
- PTO control off ONLY (for fender switches ONLY)
- Support for 4-20mA sensors (temperature, pressure, level)
- Flow metering
- Option A: Tablet – cell/internet (optimal for multi-pump control) Includes:
- Rugged Tablet w/wall charger and car charger (SIM card for tablet to be provided by customer)
- Tablet mount
- WiFi and Ethernet ready
- Option B: Tablet - radio & cell/internet (optimal for multi-pump control) Includes:
- Rugged Tablet w/wall charger and car charger (SIM card for tablet to be provided by customer)
- Radio (1 radio per tablet, 1 radio per engine controller)
- Tablet mount
- WiFi and Ethernet ready
- 1 serial cable
- 1 serial power module
Safety features are based on use of inlet and outlet pressure sensors
- Using pump cruise feature – run boost pumps automatically based on suction (inlet) pump pressures
- Adjustable inlet and outlet pump pressure settings
- Suction (inlet) pump pressure settings
- If the pressure drops below low-values setting, the engine will start to RPM down to minimize cavitation of the pump
- Discharge (outlet) pump pressure settings: if the pressure rises above high setting, the engine will start to RPM down to a lower RPM
- Save hose from reaching a rupture pressure: set maximum hose protection pressure desired
- Detects rapid outlet pump pressure drop (2sec) due to rupture or disconnection of outlet hose or piping and will bring engine back to idle within seconds
