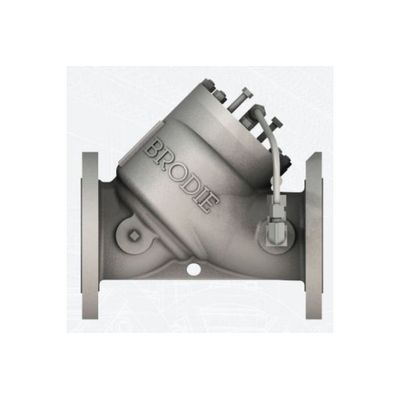

Brodie - Model BV02 and BV03 -Check Valve
The Brodie BV02 Check Valve is designed to provide smooth, shock-free opening and closure to prevent reverse flow. The Brodie BV03 is supplied as a basic valve with no controls. It is utilized as replacement or original equipment in applications where custom control is desired by the end user. As with all Brodie BV Control Valves, it may be adapted for hydraulic, pneumatic or solenoid pilot control.
Most popular related searches
check valve
control valve
piston control valves
hydraulic pneumatics
pressure monitoring
piston valve
diaphragm valve
valve operator
Designed to meet the challenges for today’s petroleum and environmental needs, Brodie’s positive sealing and linear action control valves provide uniform speed of response and leak-proof performance.
REDUCED COST OF OWNERSHIP
- Long service life, only one moving part
- Cylinder can be removed without removing body from the line
- Cylinder assemblies available as replacement kits
SECURITY & CONTROL
- Automatic shutoff for emergency protection
- Pressure monitoring at all times
UNIFORM SPEED OF RESPONSE
Flow modulation avoids delayed response and valve slam.
- Pilot operated
- Positive Sealing/Zero Leakage
- Modular construction/easy inline service
- Adjustable opening and closing speeds – prevents damaging shock pressure
- Linear action control for uniform fast speed of control
- Simple design without diaphragms
- Common valve body and internal mechanism simplifies spare parts inventory
- Multiple control functions can be performed with one valve
