Lamor - Model 1300 (LBA 1300) -Brush Apapter

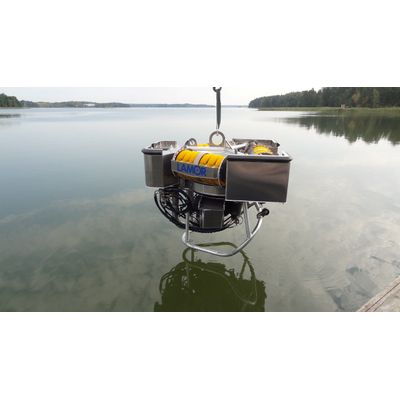

The Brush Adapter 1300 (LBA 1300) is a brush-type oil recovery module designed to fit quickly and easily onto the hopper of a Weir 1300 skimmer. The device improves the overall recovery efficiency, i.e. reduces free water intake in recovered oil and improves the performance in very high viscosity oils. The LBA 1300 has three banks of brush wheels, which rotate downward into the oil layer creating a strong inflow. The certified ASTM recovery capacity of the LBA 1300 is 222 m³/h (977 gals/min). The brush adapter can recover multiple oil types and viscosities. The LBA 1300 brush banks are mounted on a sturdy aluminum frame with a center-lifting eye. The brushes are driven by two hydraulic motors, which are powered by a single hydraulic circuit. The design of the brush adapter is quickly modified to fit multiple weir skimmer types and variations.
