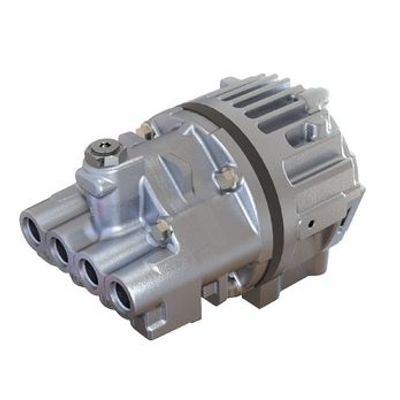

EMP - Model OP3530 -Brushless Electric Oil Pump
The OP3530 pump is a 2-stage positive displacement gear pump featuring a brushless DC motor and integrated motor drive controller. Equipped with both a scavenge section and feeder section, the pump can be used in a dry sump arrangement. The pump was designed to work with most light to medium weight oils including motor oil, hydraulic fluid, transmission fluids and some gear lubes.
- Brushless DC Motor and Drive Controller Technology +
- Fully Controllable or On/Off Single Speed +
- Positive Displacement Design +
- Self-Priming +
- Sealed and Fully Submersible +
- Product Description +
Brushless DC Motor and Drive Controller Technology
Available with 12 VDC and 24 VDC electric motors. Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a high efficiency, long life pump. Brushless motors have no contacting parts to wear and reduce life. Features include locked rotor protection, over temperature protection, over current protection, over voltage protection and reverse battery protection.
- Construction All Cast Aluminum Outer Housing
- Rated Voltage 9 to 32 VDC
- Rated Current 25 Amps Maximum
- Flow Capacity Scavenge Stage: Up to 3.5 gal/min
- Pressure Stage: Up to 3.0 gal.min
- Maximum Pressure 80 psi (Option Relief Valve)
- Operating Temperature -40°C to 100°C (Fluid)
- -40°C to 85°C (Air)
- Storage Temperature -50° C to 125° C
- Size 8.0" x 5.5" x 5.5"
- Weight 11 lbs.
