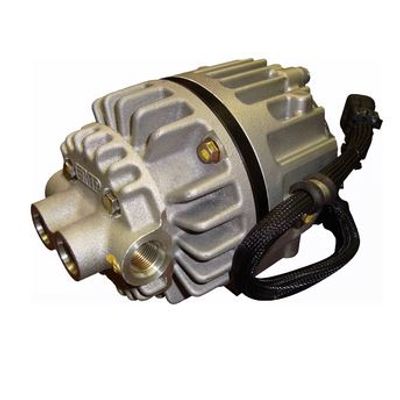

EMP - Model OP40 -Brushless Electric Oil Pump
The OP40 pump is a positive displacement gear pump featuring a brushless DC motor and integrated motor drive controller. With a flow capacity up to 4 gal/min and discharge pressures up to 100 psig it can handle a variety of fluid transfer applications including those for use with motor oil, hydraulic fluid, transmission fluids and gear lubes.
- Brushless DC Motor and Drive Controller Technology +
- High Power Density +
- Communication Protocols +
- Fully Controllable or On/Off Single Speed +
- Positive Displacement Design +
- Self-Priming +
- Sealed and Fully Submersible +
- Multiple Port Configurations +
- Service Tool Available +
Brushless DC Motor and Drive Controller Technology
Available with 12 VDC and 24 VDC electric motors. Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a high efficiency, long life pump. Brushless motors have no contacting parts to wear and reduce life. Features include locked rotor protection, over temperature protection, over current protection, over voltage protection and reverse battery protection.
