BriteSpan - Model Easy Access Series -Building

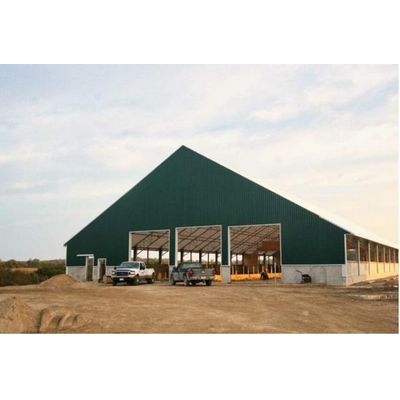

Built and designed with an open façade for Easy Access, hence its name, this multi-purpose and versatile form factor covers your valuable products while allowing immediate access to its interiors. The opening can be oriented in any direction, up to the entire side of the building to maximize traffic flow and adjacencies. Often used for equipment or vehicle storage and commodity storage for its flexibility.
All Easy Access Series profiles meet/exceed site-specific design criteria, and it is a purpose-built structure best suited for continuous reach to covered interior space, maximum ventilation, airflow, and protection from the elements.
- Fully engineered specifically for your site location.
- Available with a structural engineer’s seal.
- Arched-style design & sizing in many different profiles to fit your needs.
- Custom designs available.
- Exceptional value.
- Designed specifically for easy access to its interior.
- Stainless steel cables.
- Post-production hot-dipped galvanized purlins and secondaries.
- Hot-dipped galvanized bolt package.
- Open ended, partially enclosed or fully enclosed building.
- Custom eaves available.
- Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
- Doors can be designed into end walls.
- Customizable side opening.
- PVC (polyvinyl chloride) covers are available.
- Elite Fabric is available as an upgrade, and it extends your warranty.
- Branding and logo printing.
Genesis Series buildings can be built on the following foundation types: blocks, containers, grade beam, helical screw, piers, poured wall, slab.
Commercial uses:
Salt and sand storage.
Municipal and Public Works uses:
Salt and sand storage.
Other industry uses:
Aviation, boats/marina, break bulk, cold storage, commercial distribution, concert venues, construction, commodity storage, commercial equipment storage, events & hospitality, general storage, government facilities, indoor golf, loading docks, logistics & transportation, maintenance/construction, manufacturing, marine and ports, military, mining, municipal, oil, gas, energy, port authority, retail, river terminals, sport & recreation, storage, transfer stations, transportation, warehousing, waste & recycling, wastewater treatment, workshops.
- Vertical I-Beam legs.
- Building widths start at 60 ft. and up to 160 ft. wide (approx. 18 m to 49 m).
- Can be of any length.
- Building height and interior clearance are designed to meet the customer’s specific needs.
- Epic series building profile is gable-styled.
- Pitch is standard at 7:12 (high pitch, approximately 30 degrees), and it can be customized to 5:12 (low pitch, approximately 23 degrees).
- Low slope is for wind and high slope is for snow.
- Truss spacing is dependent on application and site loads.
- Cover is made up of individual Keder panels.
- Post-production hot-dipped galvanized trusses.
- Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
- Available in white, green, blue, sandstone, brown, grey and red in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
- Epic cover is made up of individual Keder panels.
- Vertical I-Beam legs, which make it easy for installation of steel, wood, fabric or curtain side walls.
- 2 ft integrated eaves.
