NANOCHEM - Model P-Series & MegaShield -Bulk Gas Purifier

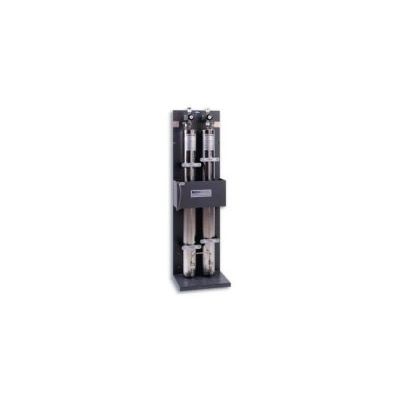

P-Series purifiers are available in 4, 8, 16 and 32 liter sizes. The purifier comes completely assembled, and consists of an inlet and outlet diaphragm valve; 1-4 canister(s) with suitable purification media, and a 40 urn SS frit on the inlet and outlet. A 0.003 urn filter is standard on the outlet of the P-4000 and all ammonia purifiers and is available as an option on all other P-series purifiers.

MS-Series purifiers enable higher flow rates and lower pressure drops than the corresponding P-Series Models. MS-Series purifiers are available in 8, 16, and 32 liter sizes. The purifier comes completely assembled, and consists of an inlet and outlet springless diaphragm valve; 2-4 canisters with suitable purification media, and a 100 urn SS frit on the inlet and outlet.

MS-Series purifiers are completely retrofittable in P-Series installations. Media refills are available through Matheson Tri-Gas, Inc., for all sizes.

• For bulk and high flow specialty gas purification
• Highest Lifetimes
• Best Impurity Removal Efficiencies
• Removes critical contaminants to sub part-per-billion levels
• End-Point Detection available for many gases, at no extra charge
• Enhances manufacturing process economy and improves equipment performance
• Provides consistently high purity gas, regardless of inlet impurity fluctuations
• Improves component lifetime and reduces particle generation by removing moisture from corrosive gases
• Easy to install & operate
• No heating or cooling required
• Quick start up
• Inlet and outlet isolation valves
• All metal parts, Type 316L stainless steel, or Nickel 200
• Mounting bracket
• Refills available for most gases (except toxic or corrosive gases)

Specifications

• 0.003 urn filter with 99.9999999% retention - Standard on P-4000 and all ammonia purifiers
• Internal surface finish < 15 pin Ra
• Maximum operating temperature is 70°C
• Maximum operating pressure is 150 psig (1.13 MPa) with endpoint detection; 350 psig (3.51 MPa) without endpoint detection

Connections

• Female inlet and outlet connections, V2" VCR"-compatible face seal fittings

Options

• 0.003 urn filter with 99.9999999% retention available
• Exhausted enclosure available. Satisfies Uniform Fire Code (UFC) requirements for hazardous gases
• Three-valve manifold with isolation and bypass valves allows disconnection of purifier without interrupting process gas flow
