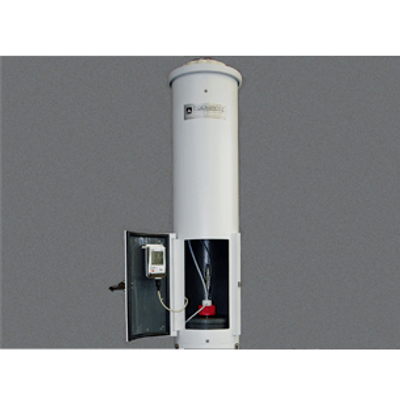

Eigenbrodt - Model BUS 100 -Bulk Sampler
A new kind of precipitation collector designed as a routine able bulk-collector to obtain samples for analysis of mercury traces. Funnel‑ and sample bottle heating enables year round operation. Cooling down to a temperature of 5 °C prevents the loss of volatile sample components. The borosilicate glass funnel helps prevent droplets adhering to the funnel and is pH neutral. Direct material, funnel shape and the collection surface correspond to the standards of the DIN EN 15853.
Most popular related searches
borosilicate glass
precipitation collector
mercury analysis
temperature logger
climatic chamber
climate chamber
bulk sampling
sample heating
heated sampling
overflow system
- Preset temperature 5 °C +/-2 °C up to 20 °C. At higher temperatures a difference of approx. 15 °C can be maintained.
- Funnel- and sample bottle heating enables all year round operation
- Funnel with 80 mm (alternatively 100 mm) diameter of collection area with bottle capacity of 198 mm precipitation (@ 80 mm funnel)
- Thermoelectric cooling / heating
- Sample bottle volume 1000 ml plus overflow bottle volume 1000 ml (not cooled or heated, material HD-PE)
- Contact material to the sample: borosilicate-glass or PTFE
- Tubing with small diameters for low evaporation and loss of sample goods.
- The precipitation collector is of modular construction and consists of the following components:
- Tube housing with strengthening ring and anchor points
- Borosilicate-glass funnel is removable for maintenance
- Heating insert with electronically controlled heating for melting the snow in the funnel while limiting evaporation
- Removable sample insert with borosilicate-glass sample bottle, maintenance free thermoelectric cooling / heating and integrated control electronics
- Overflow system with overflow capillary inner diameter 2 mm, >500 mm long and HD-PE sample bottle (others on request)
- Anchoring robes with earth rod and tension
- Bird protection ring
- Mini data logger for temperature, including data handling
- Hoses and capillaries
- Temperature logger for climate chamber and also for main housing of the housing. (version without climate chamber: only temperature logger for main housing)
- Downgrade: No heating for funnel
- Spare collection bottle, 1000 ml
- Collection diameter: 80, alt. 100 mm
- Power Supply, total: 230 VAC, 50 Hz. max.100 VA
- Funnel heating: 12 V DC, 24 Watt
- Sample cooling/heating: 12 V DC, 48 Watt
- Collecting height: 1500 mm (alt. 1600 mm)
- Dimensions: h 1500 mm, diameter 320 m
- Weight: 35 kg
