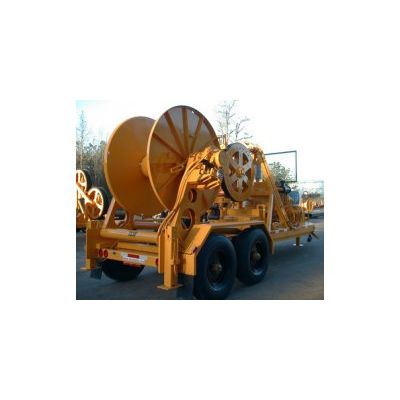

TSE - Model PTV 60-54 -Bullwheel Puller-Tensioner
This compact traction unit performs equally well as a puller or a tensioner and is ideal for reconductoring applications. Having the self-loading, powered reel winder as an integral part of the machine allows reels of conductor or pulling rope to be loaded and unloaded without a crane on the location.
Ability to operate equally well as a puller or a tensioner means that a unit can pull out old conductor, wind it on a scrap reel, unload it and tension out the new conductor all with one machine. For contractors or utilty companies performing a wide variety of jobs, these units have unsurpassed versatility. Whether it`s stringing new conductor, reconductoring existing circuits and groundwire or wrecking out old conductors these combination units are ideal. The V-groove bullwheel permits easy handling of splicing sleeves and a wide range of conductor or rope diameters.
Conductor or pulling line is imbedded in the elastomer lined V-groove of the bullwheel. TSE`s unique hydraulic system allows the operator to preset the maximum pulling tension and provides infinite linespeed and linepull control.
The machine design incorporates a pivoting bullwheel arrangement which automatically aligns the bullwheel with the point on the reel from which the conductor is being payed off. During the pulling mode the operator controls the bullwheel movement to levelwind the pulled cable onto the storage reel.
- Fully hydrostatic drive system
- Infinite variable speed and linepull control with overpull protection
- Reel capacity up to 96" diameter, 53" wide
- Tandem axle with electric brakes
- Elastomer bullwheel segments
- Spring-applied / hydraulic pressure released holding brake
- Central operator`s position for maximum safety and visibility
- Oscillating bullwheel for for minimal fleet angle on conductor rope
- Self-loading rear mounted reel winder
- Hydraulic front and rear jacks
