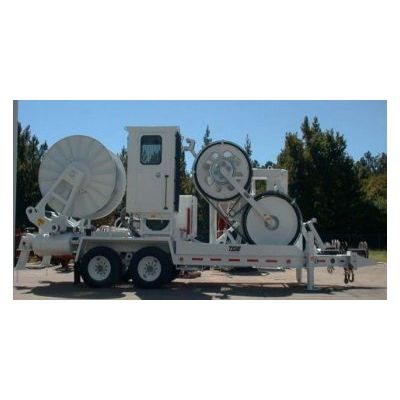

TSE - Model BWPT 120-60 -Bullwheel Puller Tensioner
The BWPT 120-60 is a multi-purpose machine which performs equally well as a puller or tensioner and is ideal for reconductoring applications or installation of new conductors. Having the self-loading, powered reel winder as an integral part of the machine allows reels of conductor or pulling rope to be loaded and unloaded without a crane on the location. The ability to operate equally well as a puller or a tensioner means that this unit can pull out old conductor, wind it on a scrap reel, unload it and tension out the new conductor all with one machine.
For contractors or utilty companies performing a wide variety of jobs, these units are the most versatile machines in the industry. Whether it`s stringing new conductor, reconductoring existing circuits and groundwire or wrecking out old conductors these combination units are ideal. The 60 inch multi-groove bullwheels with replacable lining segments provide the power to pull in rope or tension out conductor. The side mounted V-groove bullwheel permits easy handling of conductor and splicing sleeves for pulling out old conductor or groundwire.
TSE`s unique hydraulic system allows the operator to preset the maximum pulling tension and provides infinite linespeed and linepull control. The machine design incorporates a pivoting bullwheel arrangement which automatically aligns the bullwheel with the point on the reel from which the conductor is being payed off.
- Max. continuous linepull: 12,000 lbs. @ 3MPH
- Max. Intermittent linepull: 14,000 lbs.
- Linespeed: 0-5 MPH Variable
- Engine: 160 HP Diesel
- Bullwheel diameter: 60 inches
- Bullwheel groove diameter: 1.5 inches
- Maximum reel size: 90" X 54"
- Fully hydrostatic drive system
- Infinite variable speed and linepull control with overpull protection
- Spring-applied / hydraulic released holding brakes
- Self-loading rear mounted reel winder
- Oscillating bullwheel for minimal fleet angle on conductor or rope
- Elevated centrally located console for optimum visibility
- Tandem axle trailer mounted with air brakes
- Hydraulic front and rear jacks
- Air Conditioned operator`s cab
- Non self-loading reelwinder
