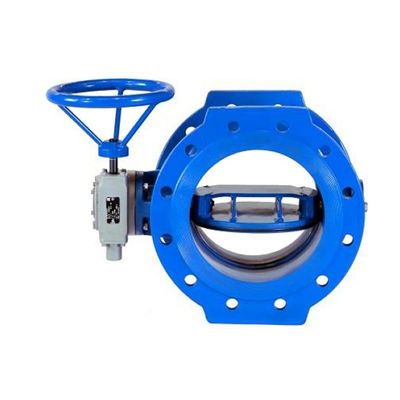

AB Valves - Butterfly Valve, Double Eccentric, F4 with B-Plan Disc

SHARE

Product group : Butterfly Valves (BV)ØŒ  Fields of application : Water transmissionØŒ Industrial applicationsØŒ Dams and hydropowerØŒ Water Distribution networkØŒ  Medium : Sea waterØŒ Raw waterØŒ Drinking waterØŒ  Body : Aluminum Bronze ØŒ Stainless SteelØŒ Carbon steel, low alloy steelØŒ Ductile Cast IronØŒ Nickel Aluminum BronzeØŒ  Disc : Stainless SteelØŒ Carbon steel, low alloy steelØŒ Nickel Aluminum BronzeØŒ Aluminum BronzeØŒ

Most popular related searches
butterfly valve
water network
raw water
water transmission
water distribution
drinking water
low carbon
water body
EN standard
water industry
  • Sealing : NBR، EPDM،
  • Temperature °C : Up to 70
  • Size (mm) : 100 - 3000
  • Pressure (bar) : 6- 64
  • Description :Design Standard: DIN EN 593 (DIN3354)
    Face to Face Dimension: DIN EN 558 -1 series 14 (DIN 3202 – F4)
    Flange Dimension: DIN EN 1092-2 (DIN2501)
  • Face to Face Dimension: DIN EN 558 -1 series 14 (DIN 3202 – F4)
  • Flange Dimension: DIN EN 1092-2 (DIN2501)
