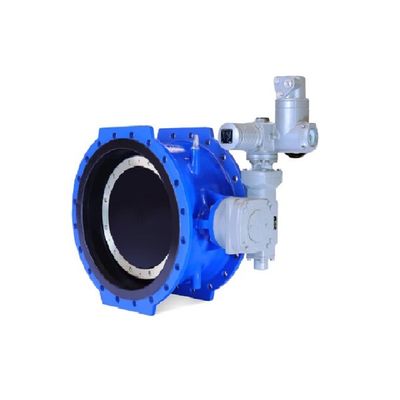

AB Valves - Butterfly Valves with Lining
FromAB Valves GmbH
Product group : Butterfly Valves (BV)، Fields of application : Industrial applications، Water transmission، Sewage and Treatment، Medium : Wastewater، Sea water، Body : Carbon steel, low alloy steel، Ductile Cast Iron،
Most popular related searches
butterfly valve
water transmission
low carbon
sewage treatment
sewage
water body
EN standard
industrial water
- Disc : Stainless Steel، Nickel Aluminum Bronze، Ductile Cast Iron، Carbon steel, low alloy steel،
- Sealing : EPDM، NBR،
- Temperature °C : Up to 70
- Size (mm) : 100-3000
- Pressure (bar) : 6 - 40
- Description :Design Standard: DIN EN 593 (DIN3354)
Face to Face Dimension: DIN EN 558 -1 series 14 (DIN 3202 – F4)
Flange Dimension: DIN EN 1092-2 (DIN2501)
Lining: Ebonit
cornosion protect
Body : inside hard rubber coating
Disk : hard rubber coating - Face to Face Dimension: DIN EN 558 -1 series 14 (DIN 3202 – F4)
- Flange Dimension: DIN EN 1092-2 (DIN2501)
- Lining: Ebonit
- cornosion protect
- Body : inside hard rubber coating
- Disk : hard rubber coating
