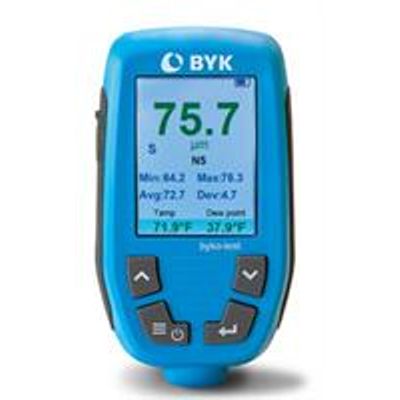

Paul-N-Gardner - Byko Test Dry Film Thickness Gauges

The byko-test offers a unique solution to monitor environmental conditions while measuring dry film thickness. Air temperature and humidity sensors are built into the gauge. The dew point temperature is displayed to determine, if the conditions are right for painting.

The byko-test complies with SSPC PA-2 and ASTM D7091 methods for the measurement of coating thickness. There is a SSPC mode to assist the operator on measurement protocols and calibration. The large, rotating color display is readable in high and low light conditions. It`s easy to use with large operating buttons ideal for users wearing gloves.

• Compact design for one hand operation
• Color display with 90° and 180° flip screen
• Automatic substrate recognition
• Strong wear resistant ruby probe tip
• Zero, single and two point calibrations
• Key lock for only taking readings
• Hi/Low tolerance settings for pass/fail warning
• Statistic mode with 1000 measurement memory
• Continous measurement mode
• Stability mode warns user when instrument is tilted preventing wrong readings
• SSPC specific mode for standardized measurement protocols and calibration routines
