Redoma - Model Firefox A -Cable Recycling Plant - Up to 1300 kg/h

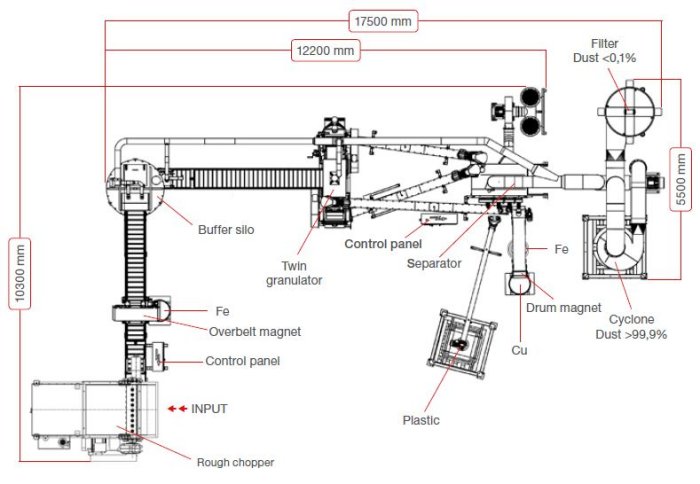

Highly automated and efficient cable plant made for tough conditions. Equipped with 45 kW Rough Chopper. Can be fed either with a forklift truck with tilting bin, belt conveyor or a crane with cactus grab. Equipped with intermediate storage bin with proportioning feeding and an efficient dedusting system.
Cable recycling plant with an excellent price/performance ratio made for tough conditions with low investment costs at an overall low cost of ownership.

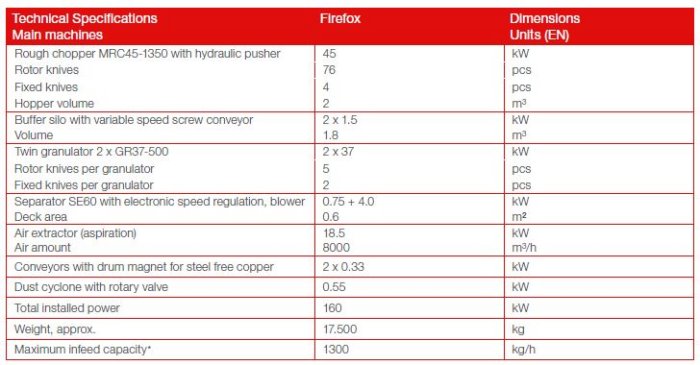

The Firefox (FF) has typically a capacity of up to 1300 kg/h for cable with a Cu content of 50% (capacity depending on type of cable). It includes a Buffer Silo between the Rough Chopper and the 2 x 37 kW Twin Granulator for increased capacity. It includes a 45 kW Rough Chopper equipped with hard metal knives that can process all types of dry cable up to diameter 120 mm with a length up to 1000 mm (containing steel up to diameter 2 mm).
- Suitable for all types of dry cable (up to 2 mm steel reinforcement)
- Cable coils and bundles can be fed into the Rough Chopper
- Cable diameter max. 120 mm, length max. 1000 mm
- Suitable for forklift or crane feeding
- 45 kW Rough Chopper including hard metal knife system for long life span, hydraulic pusher, automatic buffer feeding
- Buffer Silo between Rough Chopper and Granulator, increasing overall capacity and ensuring efficient separation
- Granulators with wear plates of HARDOX
- Filter with a Pre-Cyclone improving working environment
- Copper and aluminum purity: minimum 99.5%
*Maximum infeed capacity is based on power cable with a copper content of 50%.
Additional equipment for recovery of fines from the plastic is available on request.
With reservation for technical alterations.
