- CAE - Mobile Handheld Intensity Array
CAE - Mobile Handheld Intensity Array

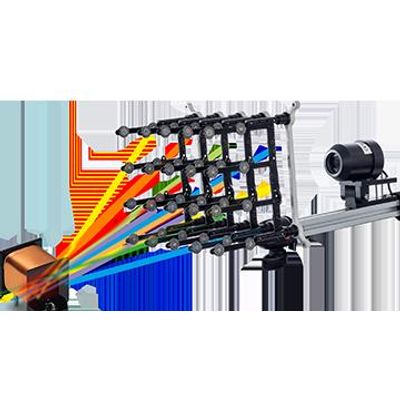

The mobile handheld intensity array is for the localization of low frequencies for stationary and transient noise from 40 Hz. Due to the small size and online analysis, it is a perfect trouble shooter. The detection is done by scanning the surface. The result is a photo or video (acoustic-photo/acoustic-video). Intensity measurements have a very high dynamic range because no algorithms or beampattern are limiting the range.
- size of the acoustic camera: 160 mm x 120 mm
- <33 dB to 120 dB
- recommend frequency range of the acoustic camera: from 40 Hz
- material of the acoustic camera: fibre-reinforced polymer
- weight of the acoustic camera: 0,8 kg
The data acquistion system is a National Instruments embedded-controller with real-time operating system and FPGA.
- Number of channels: 40
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface to PC: Ethernet
- Fanless: Yes
- Additional inputs: Trigger, Tacho (RPM)
- Powersupply: 12 V
- Consumption: < 7 W
- Dimension: 23 cm x 18,5 cm x 5,8 cm
- Weight: 2 kg

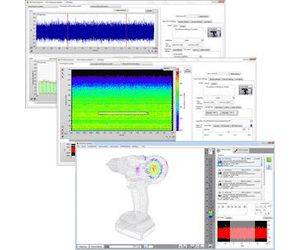

The Noise Inspector software is the standard solution for visualizing sound sources. The application-oriented software guides you from data acquistion to analysis to saving and reporting of acoustic data.
- Online- and offline analysis
- Acoustic-photo und acoustic-video
- A lot of HD algorithms: Beamforming, EVOB, CLEAN SC, MUSIC, Capon, DAMAS, Real 3D Beamforming,...
- Frequency analysis and time-frequency analysis (sonogram)
- Acoustic weighting (A, B, C) or linear presentation
- Open interface to Matlab for own algorithms
- Easy export of terce/octave, measurement, acoustic-photo and acoustic-video
- Playback of local sound
Every acoustic camera is expandable through additional arrays for opening up new fields of application.
- Expansion with Bionic XS-56 arms (application from 800 Hz) → Go to Bionic XS-56
- Expansion with Bionic S-112 arms (application beamforming from 400 Hz; holography from <40 Hz) → Go to Bionic S-112
- Expansion with Bionic M-112 arms (application beamforming from 250 Hz; holography from <40 Hz) → Go to Bionic M-112
- Expansion with Bionic L-112 arms (application from 150 Hz) → Go to Bionic L-112
- 3D Beamfoming System through a 3D-array and the 3D Beamforming algorithm → Go to 3D Array
- Expansion with an Acousic Compass (3D intensity probe, application from 40 Hz) → Go to Acoustic Compass
- Calibrator adapter
- Battery
- Notebook or Tablet
- Flight case
- Windshields
The Breakout Box extends the data acquisition system for connecting ICP/IEPE and analoge sensors the Frontend.
- Number of channels: 8 to 40
- Sensor interface: ICP, IEPE and analog sensors single switchable
- Input voltage: ± 5 V
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface: Connection to I²S Frontend
- Fanless: Yes
- Powersupply: 12 V
- Consumption: < 1 W
- Dimension: 14 cm x 7,5 cm x 5 cm
- Weight: 0,5 kg
