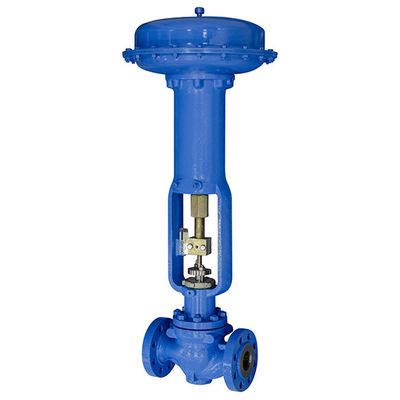

Master Flo - Model MED - M-Series -Cage-Guided Globe Control Valve
The MED Series globe valve has a cage trim with a balanced plug and a selection of flow characteristics. Various trim options are available in a common platform to handle a wide range of applications. We can easily select the right body size, flow characteristic, and trim to meet your process requirements. The standard valve plug action is push down to close.
Most popular related searches
- The cage guide ensures accuracy and stability of the plug movement.
- Valve flow characteristics can be easily changed by replacing the cage.
- Reduced Trim design can control low flow without changing the valve size.
- Noise reducing cage available.
- Balanced trim design reduces the thrust required for valve opening and closing.
- Multiple graphite piston rings provide shutoff Class IV up to 593°C (1100°F).
P/T Rating
- Class 150, 300, 600
Connection Types
- RF Flanged – CL150, 300, and 600 per ASME B16.5
- RTJ Flanged – CL150, 300, and 600 per ASME B16.5
- BWE – Schedule 40 or 80 per ASME B16.25
- Screwed or Socket Welding (1″ or 2″ only) – Per ASME B16.11
Standard Connections
- NPS – 1″,1 1/2″,2″,2 1/2″,3″,4″,6″,8″
Max. Pressures
- 1500 Psig
Operating Temperature
- Max Temperature 593ºC (1100ºF)
