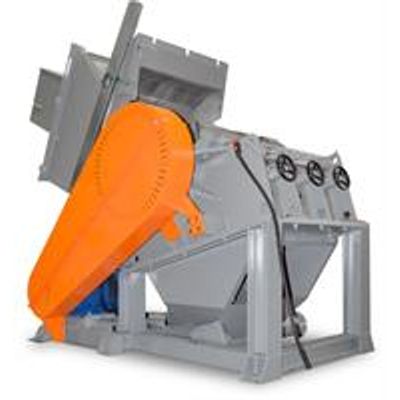

Camec - Model MG300 -Granulators
FromCamec
The granulators of the MG line are designed to grind and reduce heterogeneous plastic waste materials from injection moulding, extrusion moulding, blow moulding, thermoforming or for rubber granulation. The rotor’s special configuration and cutting angle between the blade and the counterblade save energy and significantly reduce the formation of dust during the granulation process. The heavy-duty structure with bearings well separated from the cutting chamber means granulation can be done with water jets inside the granulating chamber. This feature makes the machine extremely versatile and appropriate for granulating materials with a low melting point.
Most popular related searches
plastic waste material
granulator
rubber granulate
water jetting
rubber granulator
rubber granulation
plastic waste
plastic waste reduction
MG300/5
- Overall dimensions: 1600 x 1050 x 1500 mm
- Cutting chamber: 400 x 600 mm
- Rotor diameter: 400
- Weight: 2800 kg
- Motor: 30 kW
- Blades: integrated, adjustable
- Blade thickness: 30 mm thick
MG300/8
- Overall dimensions: 1600 x 1350 x 1500 mm
- Cutting chamber: 400 x 800 mm
- Rotor diameter: 400 -Weight :3100 kg
- Motor: 45 kW
- Blades: integrated, adjustable
- Blade thickness: 40 mm thick
MG300/10
- Overall dimensions: 1650 x 1550 x 1700 mm
- Cutting chamber: 400 x 1000 mm
- Rotor diameter: 400
- Weight: 4050 kg
- Motor: 55 kW
- Blades: integrated, adjustable
- Blade thickness: 40 mm thick
