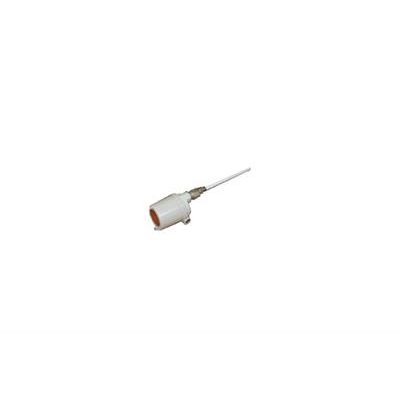

Delavan - Model 410 -Cap Analog Integral R.F. Capacitance Level Transmitter
Delavan`s Cap Analog 410 is a completely adjustable Integral R.F. Capacitance Transmitter. The 410 system provides a continuous 4-20mA analog signal proportional to the level. This versatile transmitter can be used in liquids, slurries and most powder bulk solid applications.
Delavan`s R.F. Capacitance Cap Analog 410 system consists of an electronic amplifier mounted in a cast aluminum explosion proof housing. The housing is integrally mounted on the top of the probe.
The Cap Analog 410, along with its probe sensor, operates as a capacitance sensitive system that converts changes in level to changes in output signal. After calibration, any change in level is recognized and converted to an analog output signal (4-20mA or 0-10 Volts DC). The system will operate any standard 4-20mA DC or 0-10 Volts DC indicator. The Delavan AFI-150 or DFI-150 indicator is available mounted in a rugged NEMA 4X housing.
The Cap Analog 410 is supplied with two 20 turn, (ZERO and SPAN) potentiometer adjustments. These controls are independent and non-interacting. In addition, DIP switches are provided to extend the range of ZERO and SPAN potentiometers.
- Self-contained integral electronics
- Explosion proof design
- Isolated 4-20mA and 0-10 Volts DC output
- Simple two-step calibration
- Universal power supplies
- Built-in static suppression
