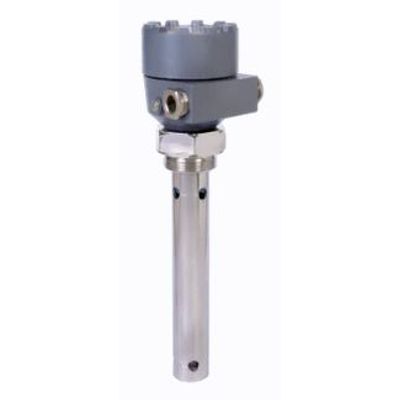

Sapcon CAPVEL - Model LP -Capacitance Level Transmitter

• Power Supply: 24 to 48V DC
• Application Temperature Range: Up to 350°C
• Output: 4-20mA, Modbus-RTU (RS-485)
• Partially & full PTFE insulated sense
• Process connection: Screwed, Flange & Tri-Clamp
• Probe length: 100 mm to 10m
• Certifications: Flame Proof IIC & IP65 Housing

It is composed of specially developed capacitance change gauging circuit. It uses fast RISC based processor to perform all the complicated jobs of evaluat- ing the level out of the capacitance. This capacitance is formed by the sense rod and the metallic container wall where containers are non-metallic or non-uniformly wide or having turbulent fluid, a metallic stilling well is provided. The amount of capacitance is proportional to the level of material between the sense rod and metallic wall of stilling tube or container.
