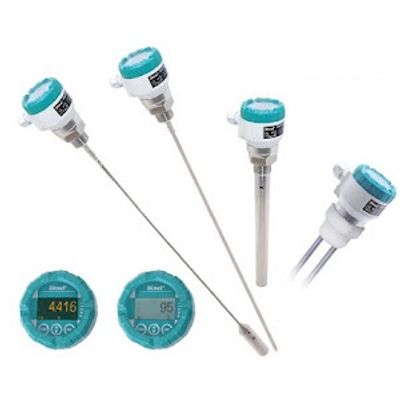

Dinel - Model CLM-70 -Capacitive Level Meters

New intelligent capacitive level meter with display, HART communication and diagnostics. For continuous level measurement of liquids and bulk solids in all industrial branches. A wide range of applications, direct installation in storage silos, hoppers, vessels, sumps, etc. Variants with fully coated electrodes for aggressive or electrically conductive media. Measured data in real time on the display (OLED or LCD available). Analog output 4 - 20 mA with digital two-way communication HART®. Comparing with reflective level meters, CLM-70 measures along all the electrode in full range (no dead zones). Contrary to radar level meters, also media with extremely low dielectric constants (εr) can be measured. Possible copying the configuration between level meters using the display module. Stainless steel design suitable for the food and pharmaceutical industries.
