Cytiva

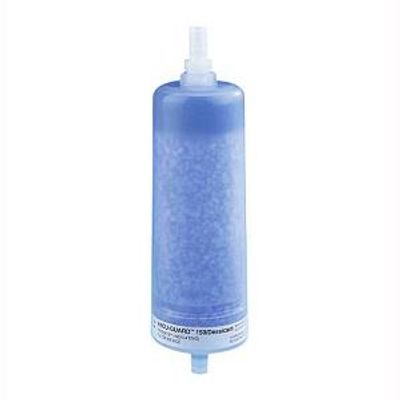

Whatman VACU-GUARD - Model 150 -Capsule Filters
FromCytiva
Whatman VACU-GUARD capsule filters from Cytiva are ideal for protecting vacuum pump systems from solvent vapor or gaseous contaminants and aqueous aerosols.
Most popular related searches
capsule filter
vacuum pump system
pump system
activated carbon
vacuum pump
carbon molecular sieve
laboratory filtration product
molecular sieve
inline filter
laboratory filtration
Whatman VACU-GUARD capsule filters from Cytiva are ideal for protecting vacuum pump systems from solvent vapor or gaseous contaminants and aqueous aerosols.
- Excellent for protecting vacuum pump systems from solvent vapor or gaseous contaminants and aqueous aerosols.
- Designed for in-line use with stepped barb connections for 10 to 12 mm i.d. hose.
- Available with choice of chemical trap: activated carbon, molecular sieve, or desiccant.
- Membrane retains 99.99% of airbone particles greater than 0.1 µm.
- Features hydrophobic polytetrafluoroethylene (PTFE) membrane.
The easy-to-use VACU-GUARD inline filter devices help to confine and isolate infectious materials in vacuum systems and protect your laboratory.
- Parameter: VACU-GUARD 150, activated carbon
- Inlet Connector : Hose barb / stepped barb
- Outlet Connector : Hose barb / stepped barb
- Housing : Polypropylene (PP)
- Operating pressure max. : 1 bar (15 psi)
- Filter Media : Polytetrafluoroethylene (PTFE)
- Retentions : Aqueous solutions: up to 0.9 bar (14 psi) Particulates in air: 0.1 µm 99.99%
- Chemical Trap Media : Activated carbon
