ERG - Carbon Filters for Odour Control in the Water Industry
We offer a comprehensive range of activated carbon, impregnated carbon, oxidising alumina media, and hybrid, multi-media filters. For the Middle East market we also offer in situ water and chemically regenerable carbon. An ERG dry media filter may be used as a standalone filter for polishing a chemical scrubber discharge or as part of a DryCat system. All our dry media filters require no operator intervention and provide guaranteed odour control performance.
- High removal efficiency of H2S and other odours
- Outlet H2S concentrations <5-10ppb
- VOC polish to
- Filters to treat 200 to 200,000m3/hr
- Low pressure drop <500Pa
- Bed life designed to suit requirements
- Low capital cost
- Supplied in PVC/GRP or coated steel
Alkali impregnated carbon
Pelletised for low pressure drop, up to 25%w/w take-up of H2S, good mercaptans removal
Acid impregnated carbon
Pelletised or granular, up to 8%w/w take-up of ammonia
Activated carbon
Pelletised or granular, for VOC removal
Water regenerable carbon
Pelletised, up to 20% w/w take-up of H2S, regenerable using water for up to 8 cycles. Operational cost savings
Special applications
Alternative grades available for unusual duties
Oxidising media for VOC odour polishing.
- Deep bed filters
- Containerised filters
- Annular filters
- Dual deep bed filters
- Purpose made filters
- Air valve vent filters
Deep bed filters
- ideal for low gas flows 200-2,000m3/hr
- can be passive or forced ventilation
- widely used for local tank ventilation
- single or dual media
- suitable for water regenerable carbon

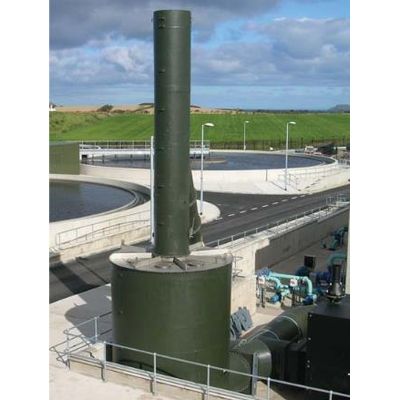

Annular filters
- ideal for medium gas flows 2,000-40,000m3/hr
- suitable for use as a polishing filter
- very compact design with small pressure drop
- single or dual media
Dual deep bed
- ideal for medium gas flows 2,000-40,000m3/hr
- suitable for use as a polishing filter or for bulk removal
- very compact design with small pressure drop
- single or dual media
- suitable for water regenerable carbon
