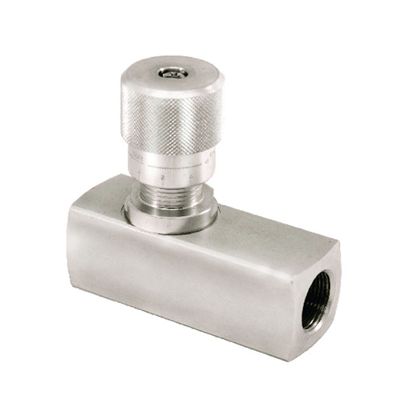

Anchor Fluid Power - Model FN1/4-1 -Carbon Steel Flow Control Valve

The FN1/4-1 is a carbon steel flow control valve designed for industrial fluid management applications. This valve features a 1/4 inch National Pipe Taper Fuel (NPTF) thread, suitable for various fluid control systems. Its compact dimensions, with a length of 2.670 inches, a width of 2.600 inches, and a height of 1.180 inches, ensure easy integration into existing setups. The valve is built to withstand a maximum pressure of 5700 psi and supports a flow rate of up to 4 gallons per minute, making it suitable for high-pressure environments. It operates effectively within a temperature range of -4 to +176 degrees Fahrenheit. The FN1/4-1 is RoHS compliant and features zinc chromate plating for enhanced corrosion resistance. It employs a standard spring setting of 7 psi and uses Buna O-Ring/PTFE for stem packing, ensuring reliable sealing and longevity in demanding conditions.
