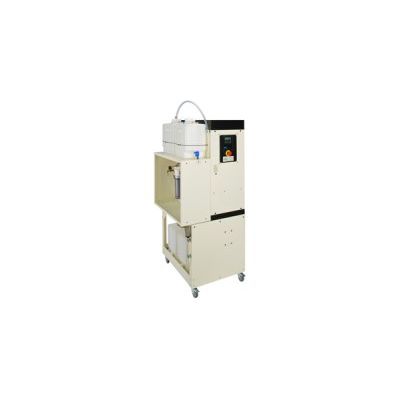

CBG - Cart-Mounted Formalin Recycler

Model Number: 5 Gallon (20 Liter) Recycler

• FMA-99(L)-5 (120 V configuration)
• FMA-99-CE(L)-20   (220/240 V configuration)

Model Number: 10 Gallon (40 Liter) Recycler

• FMA-99(L)-10 (120 V configuration)
• FMA-99-CE(L)-40   (220/240 V configuration)

Dimensions: 5 Gallon (20 Liter) Recycler

• 25 inches wide, 67 inches high, 30.5 inches deep
• (64 cm wide, 170 cm high, 77 cm deep)

Dimensions: 10 Gallon (40 Liter) Recycler

• 28 inches wide, 67 inches high, 30.5 inches deep
• (71 cm wide, 170 cm high, 77 cm deep)

Electrical Configurations: 120 VAC, 15.0 A, 50/60 Hz

• 220 VAC, 7.5 A, 50/60 Hz
• 240 VAC, 8.2 A, 50/60 Hz

Cycle Times: Approximately 120 minutes per gallon (30 minutes per liter)

• Recycling through distillation
• Microprocessor controlled, fully automated
• Automatic waste disposal
• No cool-down between runs
• Built-in spill containment
• No water hook-up or special ventilation required
• No hot surfaces – cool to the touch
• Mobile
• Electric fill pump
• ETL Listed to UL 61010 and UL 2208 and comparable Canadian standards (CSA) for 120 V configuration
• Built to CE Standards

Alternate Configuration: 2.5 Gallon Cart-Mounted Formalin Recycler (available in North America only)

Model Number: FMA-99  (120 V configuration)
