IPP - Model 223579 -Cartridge and Candle Filter

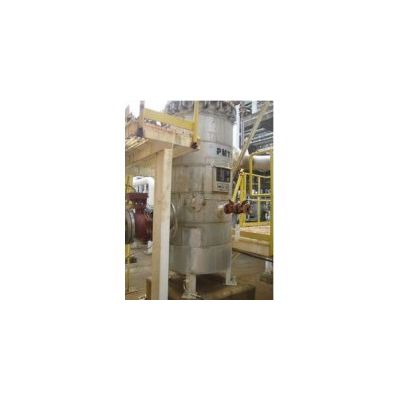

11.35 square meter 316L stainless steel cartridge pressure filter, type 565L4-KR, designed by Cuno Fitration systems, manufactured by JMC corporation, design pressure atmospheric/17.5 barg -13/50 degrees C, working pressure 10 barg  10/20 degrees C, 640 liter volume, 350 m3/hour flowrate, specific gravity 0.9, viscocity of fluid 0.2, 699mm diameter x 1545mm straight side, swing bolt flat top with davit assist, weld dished bottom, (56) 2 1/2" diameter x 40" long cartridge filters, openings top: 1-1", straight side: 2-8", 1-1", bottom: 1-1", mounted on (4) legs, ASME V111.DIV
