Hennlich - Model N1000 -Cartridge Dust Collector

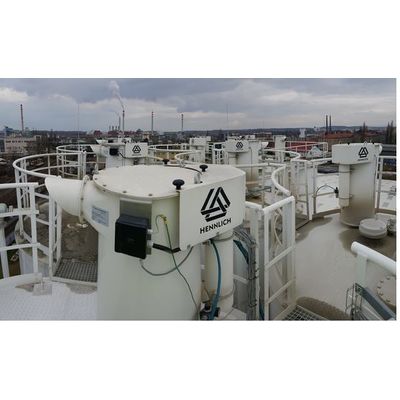

Silo venting filter N1000 is a cylindrically shaped dust collector for dedusting of pneumatically filled silos.Most popular related searches
cartridge dust collector
dust collector
dust collector cartridge
dust cartridge collector
silo venting filter
silo vent filter
filter cartridge
air intake
fan filter
vent filter
Operation qualities
- air volume 1000 m3/h
- filtration area 15 m2
- dust outlet
- standard temperature resistance -20 °C/ + 80 °C
- weight: 97 kg
Design
- carbon steel construction, body diameter 600 mm
- design without the fan - filtered air blows away through the hole between casing and top cover
- filter element: 1 x filter cartridge made of polyester coated PTFE in basic design diameter 325 mm, lenght 1000 mm
- air tank with JET-PULS filter cartridges recovery and timer
- compressed air inlet: internal thread G ½“
- pulse and safety valves, pressure regulator
