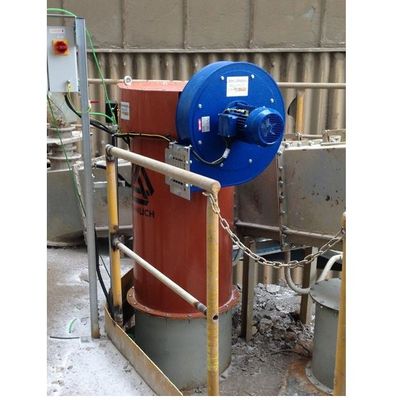

Hennlich - Model N1000 V -Cartridge Dust Collector
Silo venting filter N1000 V is a cylindrically shaped dust collector for dedusting of silos and bunkers.
Most popular related searches
cartridge dust collector
dust collector
dust collector cartridge
dust cartridge collector
silo venting filter
silo vent filter
filter cartridge
air intake
vent filter
jet filter cartridge
Operation qualities
- air volume 1000 m3/h
- fan 1.5 kW
- filtration area 15 m2
- dust outlet <10 mg/m3
- standard temperature resistance -20 °C/ + 80 °C
- weight: 138 kg
Design
- carbon steel construction, body diameter 600 mm
- filter element: 1 x filter cartridge made of polyester coated PTFE in basic design diameter 325 mm, lenght 1000 mm
- air tank with JET-PULS filter cartridges recovery and timer
- compressed air inlet: internal thread G ½“
- pulse and safety valves, pressure regulator
