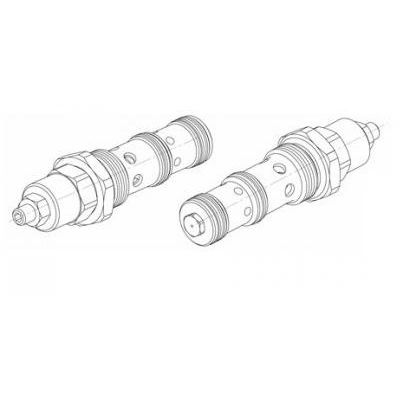

CBF - Model OVC6012-C -Cartridge Type Pilot Assisted Overcentre Valve

Maximum flow: 60 l/min. Maximum pressure: 350 bar.Standard pilot ratio: 4,25:1.Pilot ratio upon request: 3:1 8:1 10:1.Tightening torque: 110÷120 Nm.

Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
