CWG - Model HEAT ix MINI 4 – LED -Cartridges System
FromCWG d.o.o.
HEATix system for charging hot water heating systems through ion exchange – water demineralization according to VDI2035 guidelines. The device is prepared for connection to the installation of a hot water system for filling or refilling.
Most popular related searches
hot water system
shut-off valve
water quality monitoring
water metering
water meter
ion exchange water demineralization
stop valve
water demineralization
water heating
container filling

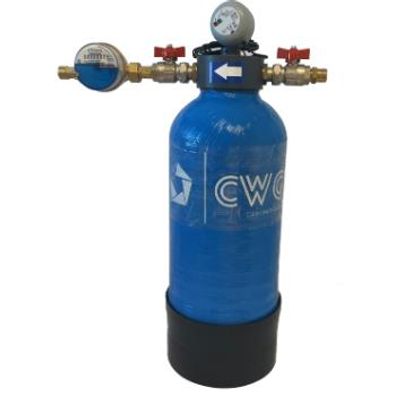

It is equipped with shut-off valves, LED sensors, ion mass quality and control water meter
- Simple and practical to use
- Composite container filled with mass
- Control water meter and stop valves
- LED water quality measurement
- Functional to complement the system
- Efficient heat transmission of water
- Device model: HEATix MINI 4 – LED
- Charging capacity (500 uS ≤ 100 uS): 500 lit (approx.)
- Device connection: 3/4″
- Max. flow during filling: 200 lit/hour
- Min. water inlet pressure: 1.5 bar
- Max. water inlet pressure: 6 bars
- Max. Temp. filling water: 40 C
- Device dimensions (HxWxD): 440 x 480 x 190
- Device weight: 8.5 kg
- Electrical connection energy: 220V / 50 Hz
