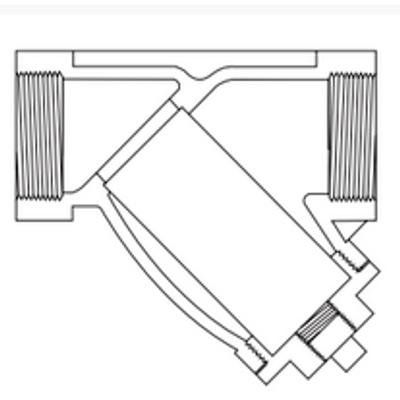

IFC - Model Y125TBT -Cast Bronze Threaded and Sweat Strainer

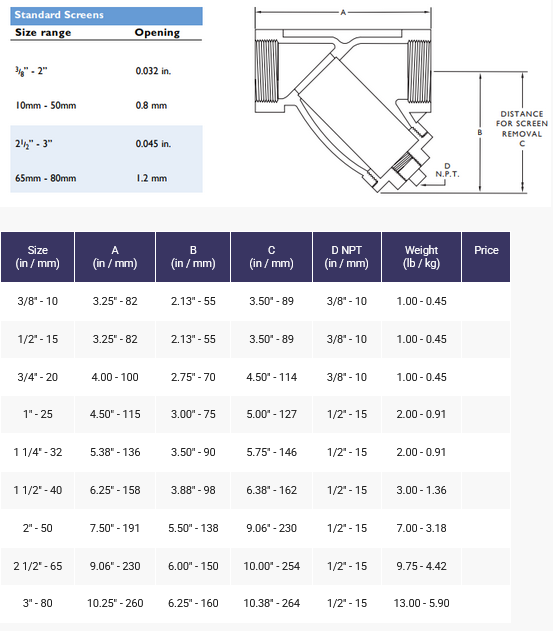

Design Features: Strainers are available with threaded (N.P.T.) or sweat (Class 125 Lb.Only) inlet/outlet connections. Strainer body meets ASME B16.15. Strainers equipped with threaded cover cap that utilize a flat gasket seal. Upper and lower machined seats. 304 SS mesh screens are standard. Perforated plate screens are optional. Drain/Blow-off connection furnished with plug as standard. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.
