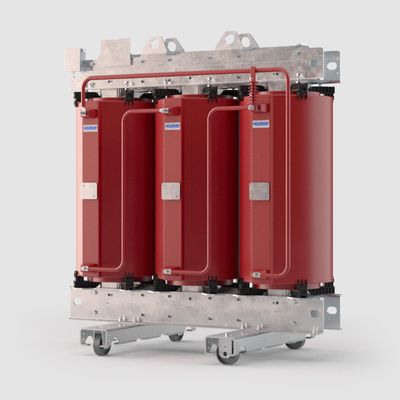

GBE - Cast Resin Transformers

CORE

Made with grain oriented magnetic laminations cut at 45° and assembled with the step lap method.

LV WINDINGS

Vacuum impregnated with class H polyester resin or encapsulated in class F epoxy resin.

MV WINDINGS

Mould encapsulated in an autoclave with class F epoxy resin.

METALWORK

Produced in-house and galvanized for installation in even the most aggressive environments.

Technological advances in recent years have allowed resin-encapsulated transformers to reach a high degree of reliability. Our E2, C2, F1, but also E3 (IEC 60076-16) and C4 (GOST-R) production can be used where there are high moisture and pollution levels and low installation temperatures, even down to -60°C, eliminating problems associated with fire risks and toxic and harmful emissions in the event of fire.

As they are built entirely with insulating, flame retardant and self-extinguishing materials, they are completely free from all restrictions that would normally be applied to flammable equipment with a fire spreading or propagation hazard.

This type of transformer can be supplied with protection boxes having the desired IP rating. The casings are painted with epoxy coatings of the required RAL (RAL 7032 is standard) with pickled or galvanized sheet metal for outdoor installation.

• Power: up to 6300 kVA
• Voltage class: up to 36 kV
• Core: CRGO or amorphous
• Windings: aluminium or copper
• Material temperature classes: F (155°C) or H (180°C)
• Cooling: AN or AF
• Protection: IP00 to IP56
• Ambient temperature: -60°C to +60°C
• Accessories: temperature monitoring instruments, ventilation system, vibration dampers and more
• Strong points: low energy content in the event of fire, self-extinguishing, good short-circuit resistance, compact and low weight, low maintenance
